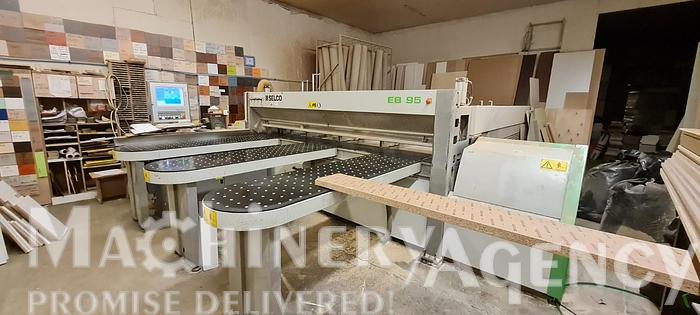

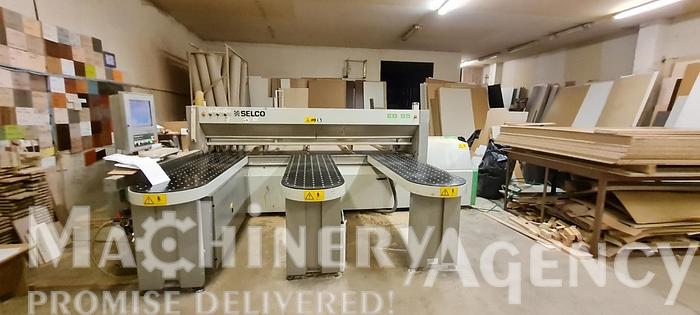

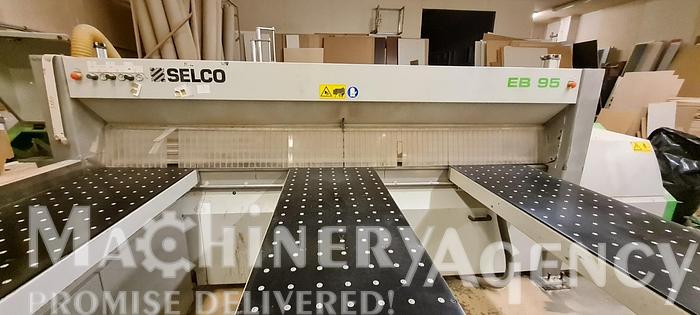

2007 BIESSE SELCO EB 95

Available immediately, in production until July, 2021.

MAIN TECHNICAL FEATURES:

- Max cutting length 3200 mm

- Max pusher stroke 3200 mm

- Max saw blade projection from working table 95 mm

- Max gripper opening 100 mm

- Three-phase working voltage 380 V/50 Hz (max allowable fluctuation +/- 10%)

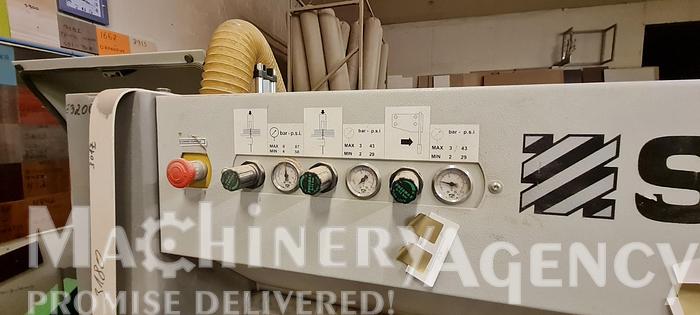

- Min pneumatic working pressure 6 bar

- Necessary air flow 3600 m3/h STANDARD

CONFIGURATION WITH:

- N.1 main saw motor 11 kW/50 Hz (14,7 HP) - 13,2 kW/60 Hz (17,5 HP)

-N.1 scoring saw motor 2,2 kW/50 Hz (3 HP) - 2,6 kW/60 Hz (3,6 HP)

- N.1 AC. motor with inverter for saw carriage movement speed 5 - 120 m/min

- N.1 Brushless motor for pusher movement - max. speed 60 m/min

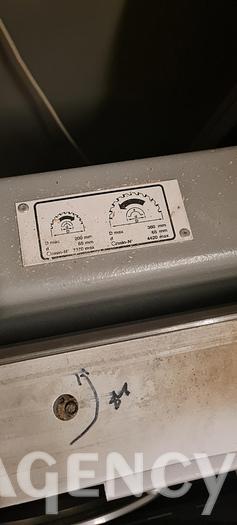

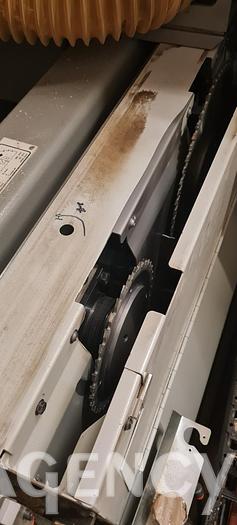

- N.1 main saw blade D.355 mm (flat/trapezoidal tooth)

- N.1 scoring saw blade D.200 mm (trapezoidal tooth)

- N.5 pneumatic grippers

- N.1 rounded air table 2050 x 650 mm with square support (left hand)

- N.1 air generator for max. 6 air tables

- N.9 roller modules D.50 mm on pusher table

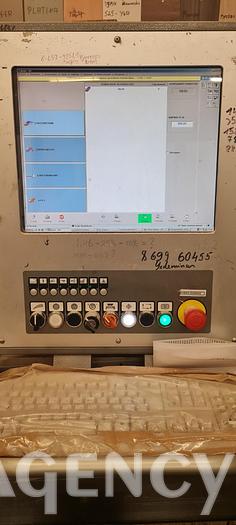

- Fast, safe saw blade change by single wrench in front squaring area - Saw blade projection automatic control - Controlled pressure beam stroke - Manual scoring saw adjustment from outside - Exclusion of scoring saw blade from the cycle through panel push-button - Single rear roller side squaring device with automatic positioning (min. 60 mm - max. 1800 mm) - Safety guards and covers in compliance with current regulations - PC-base control predisposition kit If the client does not want to use the PC supplied by Selco, he must ensure that his computer satisfies the minimum requirements listed in the offer, and that there are no software or hardware conflicts/anomalies preventing the Selco programs from using the serial ports or network cards

2 L5105237 Rounded air cushion unloading table 2050 x 650 mm

1 L5104405 Second rubber coated roller for side aligner

1 L5104590 Grooving device by main saw blade (max depth 50 mm - manual adjustment)

1 L5104442 Additional pneumatic gripper in position 150
