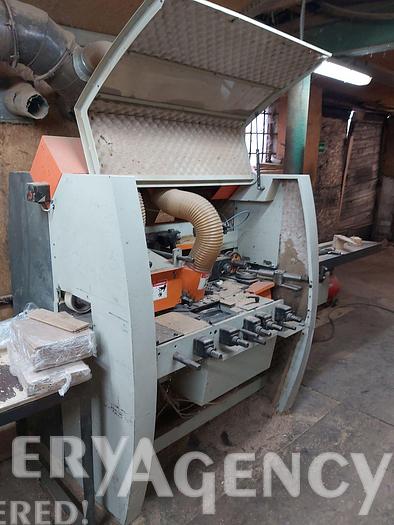

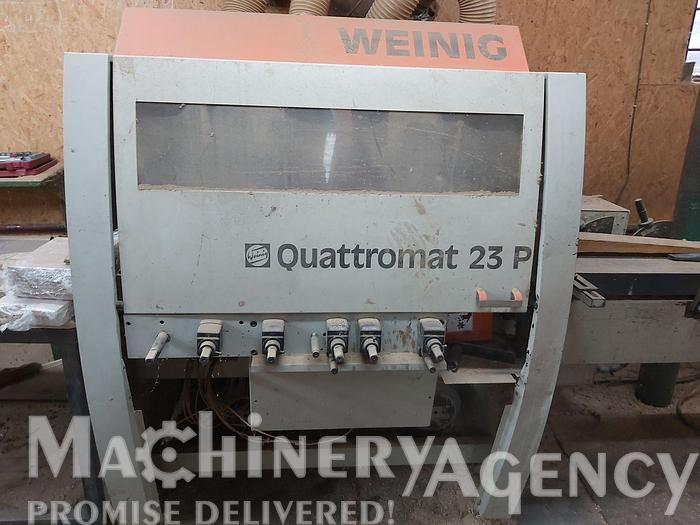

2000 WEINIG Quattromat 23P Moulder

TECHNICAL PARAMETERS

Planing width 230 mm

Planing height 120 mm

Spindle diameter 40 mm

Adjustable feed on the inverter

Power of feed motors 3 x 1.1 kW

First lower spindle 5.5 kW

Second right spindle

Third left spindle 7.5 kW

The fourth upper spindle 5.5 kW

Max. diameter of horizontal / vertical tools 140 mm / 180 mm

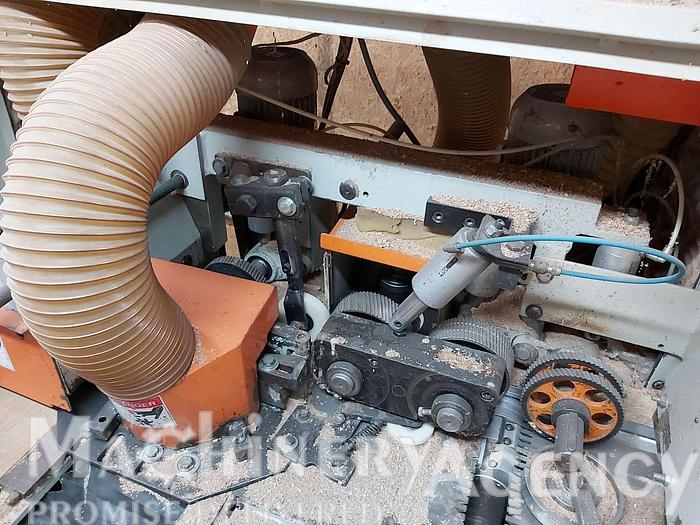

Three upper steel pulling rollers

One upper rubber pulling roller

One rubber roller in the table top

Central lubrication of the table top

Table top length 2470 mm

Pneumatic clamps

Upper head shoe, pneumatic

Connection diameter 4 x 120 mm

Machine dimensions (length / width / height) 360 x 140 x 175 cm

Weight ~ 1000 kg
