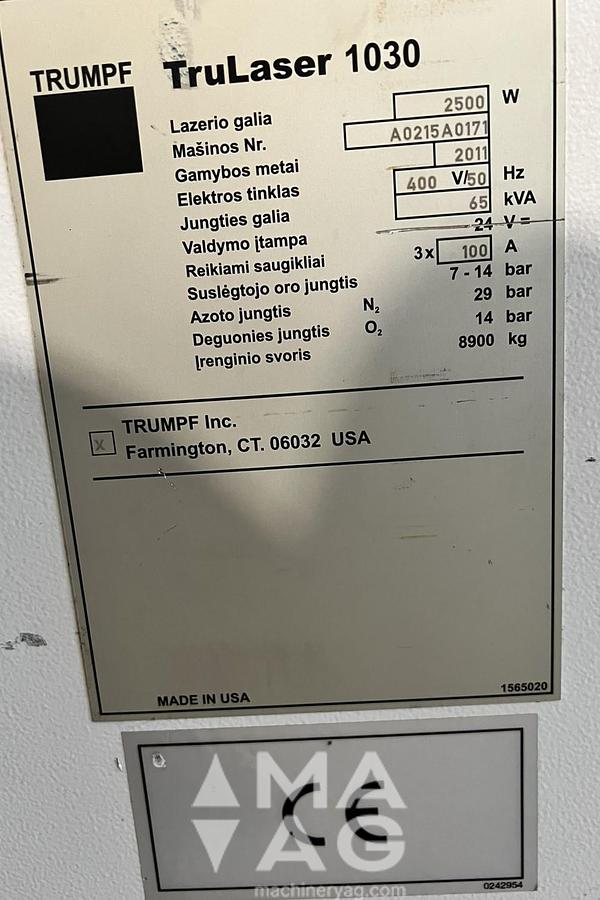

TRUMPF TruLaser 1030 cutting laser CO2, 2011

Technical data

Maximum material thickness stainless steel 8.0mm

Maximum material thickness brass 3.0mm

Maximum material thickness cupper 3.0mm

Maximum material thickness mild steel 25.0mm

Maximum material thickness aluminium 6.0mm

Control            SIEMENS SINUMERIK 840D

Dimensions (long x wide x high)       7.800 x 2.800 x 2.900 mm

Electric consumption entire unit        11 kW

Laser Output   2 kW

Laser Type      fiber TruDisk 2001

Max. workpiece weight          720 kg

Beam ON working 30000 hours

Laser ON working 24000 hours

Maximum material thickness aluminium      6 mm

Maximum material thickness brass    3 mm

Maximum material thickness cupper 3 mm

Maximum material thickness mild steel        25 mm

Maximum material thickness stainless steel  8 mm

Simultaneous positioning speed         85 X+Y m/min

Weight 10.400 kg

Working area (X x Y x Z)       3.000 x 1.500 x 75 mm
