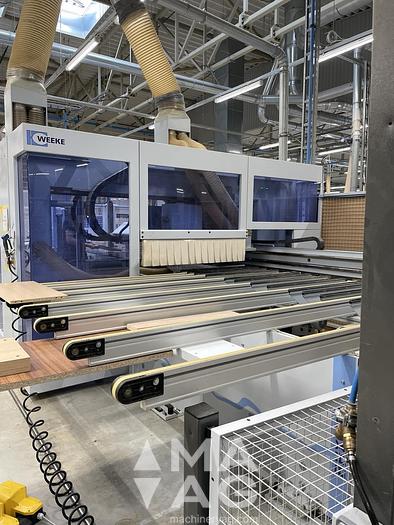

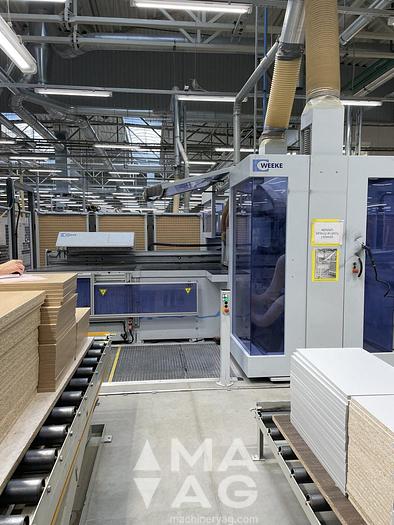

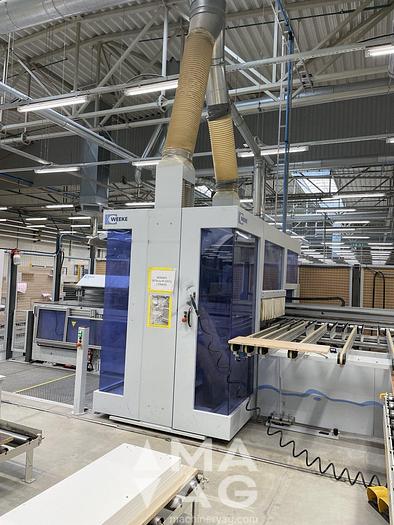

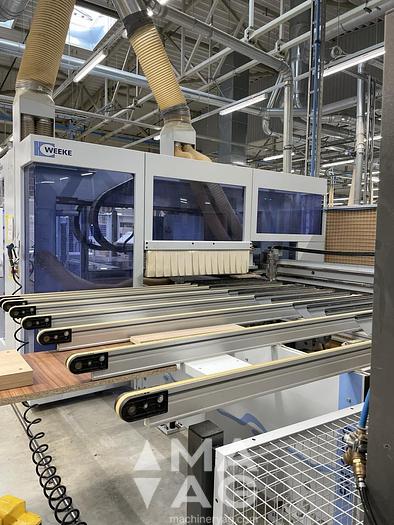

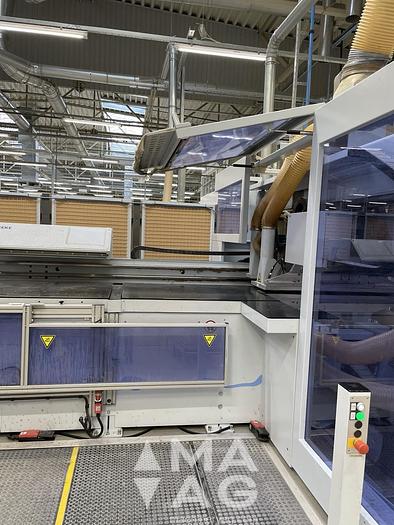

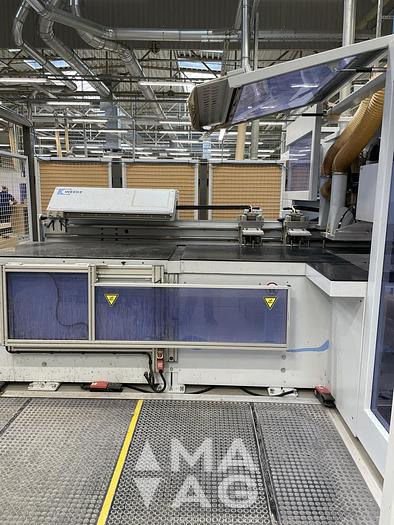

2016 WEEKE OPTIMAT BHX500 CNC-machining centre

HOMAG Weeke BHX 500 (year 2016) with ONE machining support each at the top and bottom.

Insert table with automatic workpiece feeding and positioning.

WORKPIECE DIMENSIONS

Max. workpiece length: 2500 mm (min. 200 mm)

Max. workpiece width: 1000 mm (min. 70 mm)

Max. workpiece thickness: 80 mm

Min. workpiece thickness: 2*4 mm

Max. workpiece stacking: 2 pieces

Number of milling spindles 2

Main motor power 6 kW

Max. rotational speed 7500 1/min

Tool clamping system ETP 25

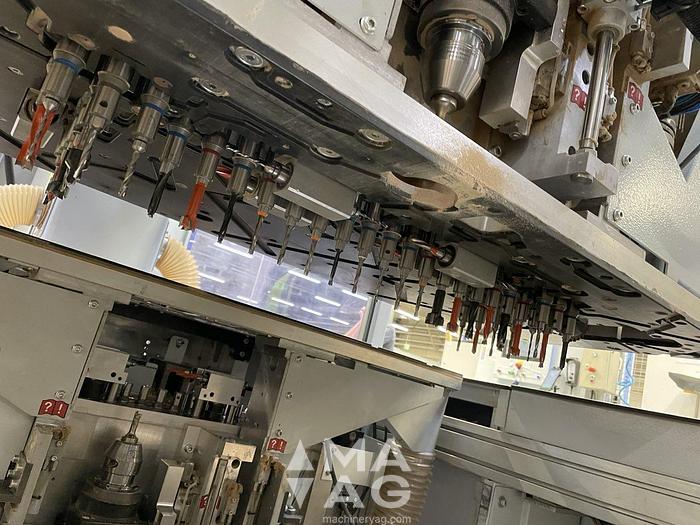

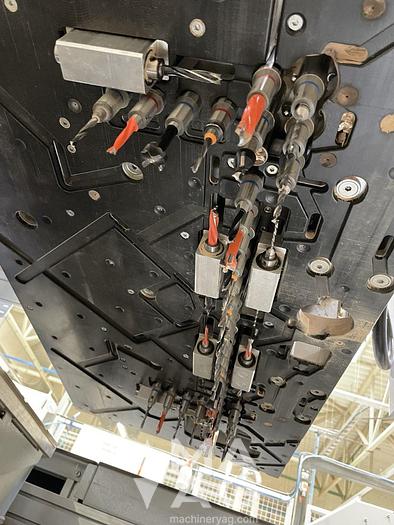

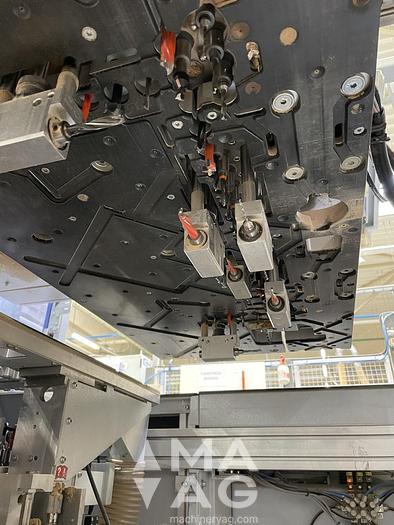

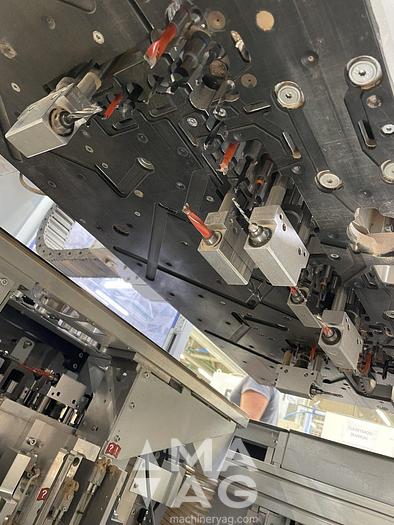

Vertical drilling spindles 72

Horizontal drilling spindles in X 16

Horizontal drilling spindles in Y 4

Groove saw 90° turn able

Machine table Feed-through technology

Special workpiece clamping system clamp gripper

Feeding Hedgehog buffer

Outfeed belt conveyor

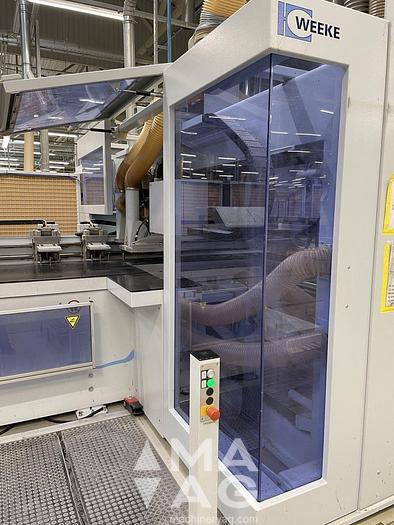

Safety device Safety mat, enclosed cabin

HOMAG AUTOMATION TPI 200 WEEKE Automatic positioning

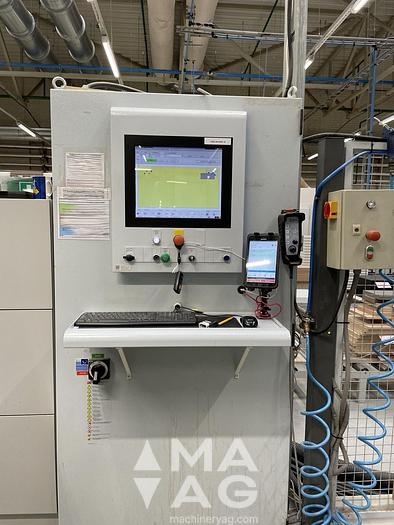

Control HOMAG POWER CONTROL PC 85

Conformity marking CE mark
