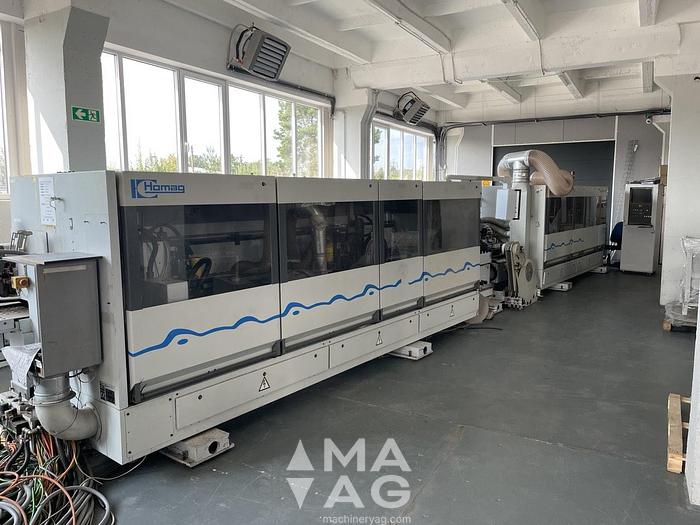

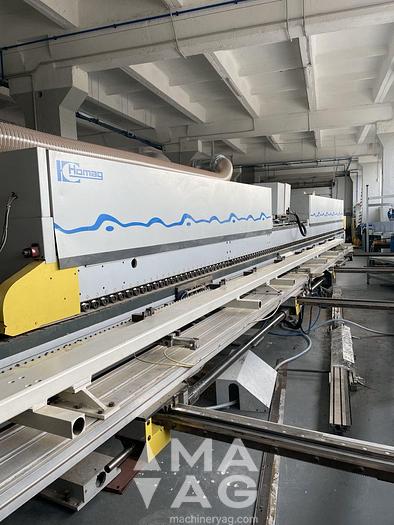

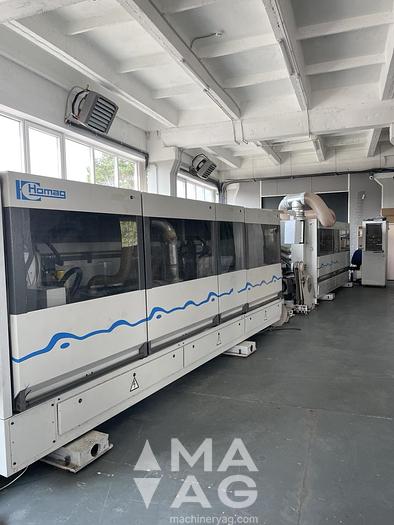

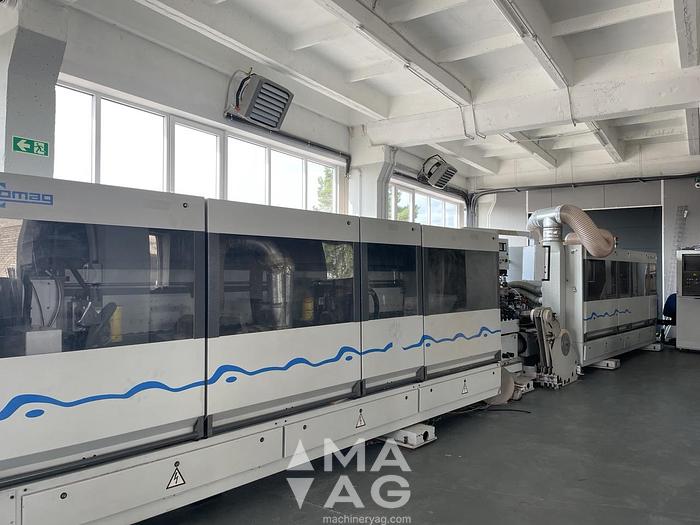

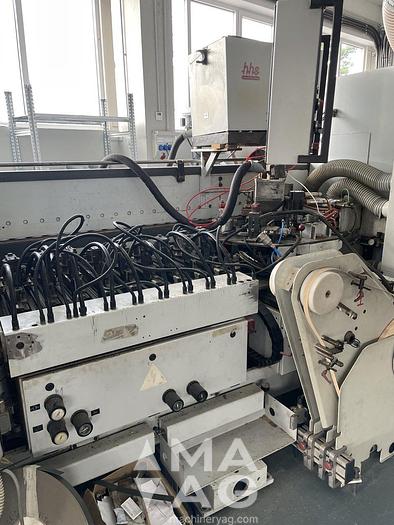

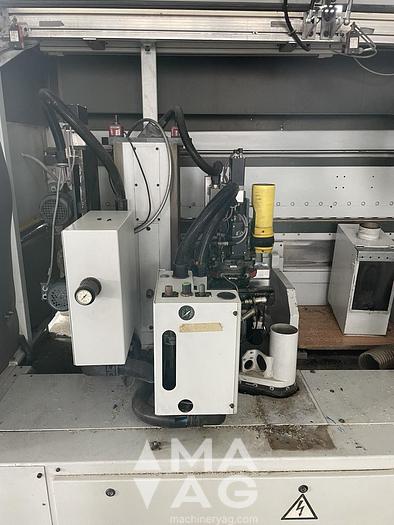

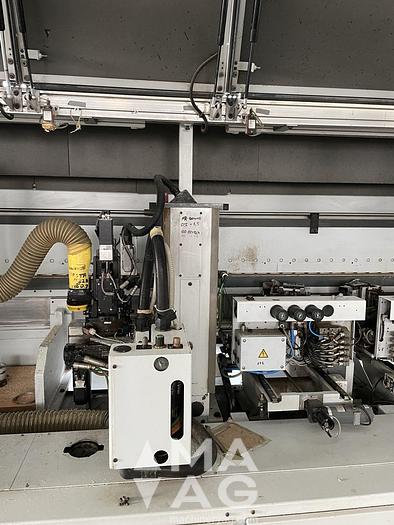

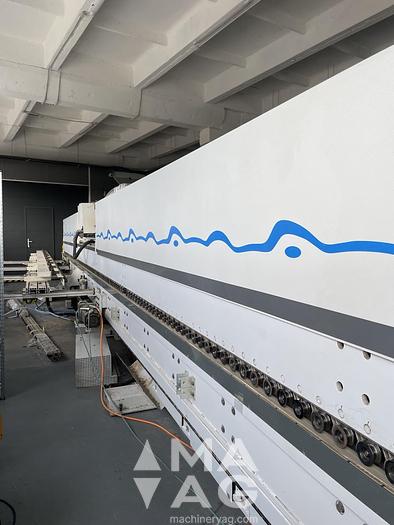

HOMAG KFL 10/22/QE/CF Softforming Double Side Edgebander, year 2000

Manufacturer: HOMAG

Model: KFL 10/22/QE/CF

Type: Double-side Sizing & Edge Banding machine

Year: 2000

Status: Connected, test possible. Location Lithuania

Basic machine

Workpiece thickness 12...60 mm

Workpiece width 70... mm

Workpiece overhang to transport chain 40 mm

Feed 10...40 m/min

Power consumption

Main drive 3...75 kW

Height adjustment 0,2 kW

Machine main drive

Feed 6...30 m/min

Power draw 2,2...6,9 kW

Gluing unit

Edging type: Straight and softforming edges

Edging material height 16...65 mm

Workpiece feed max. 60 m/min

Contour, trimming unit CF/CS 10/11/12

Discharge valve HMA 1

Melting unit HMG 12-1x1-M-HO

Gluing section for preformed parts

Type of edge Straight edges drum profiles

Edge material Belt from roll

Snipping unit for profile parts WK 46

Saw blade (diameter 80 mm, cutting width 3.2 mm, drill hole 34 mm, number of teeth 20)

Flush-trimming unit and scraping unit for performed parts

Buffing unit for performed parts

Specification, layout on request
