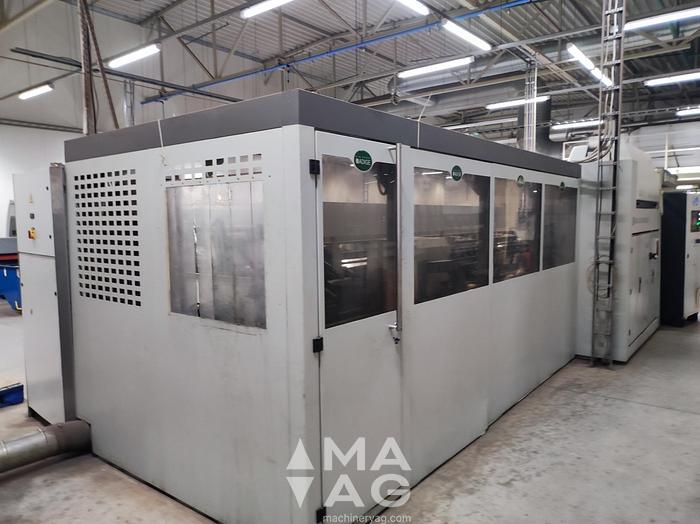

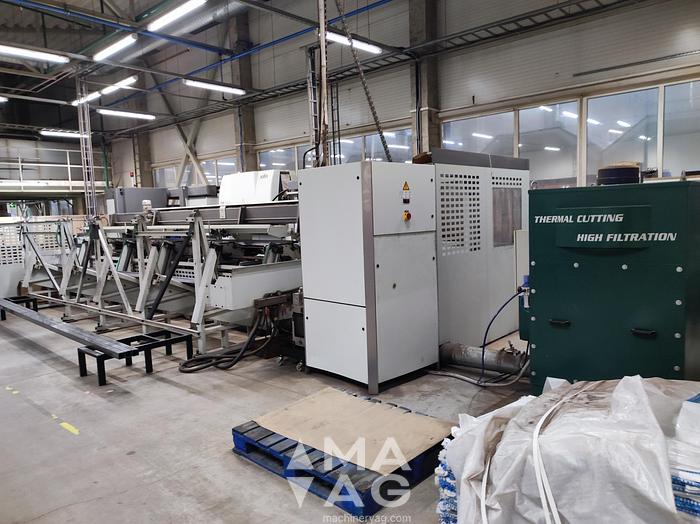

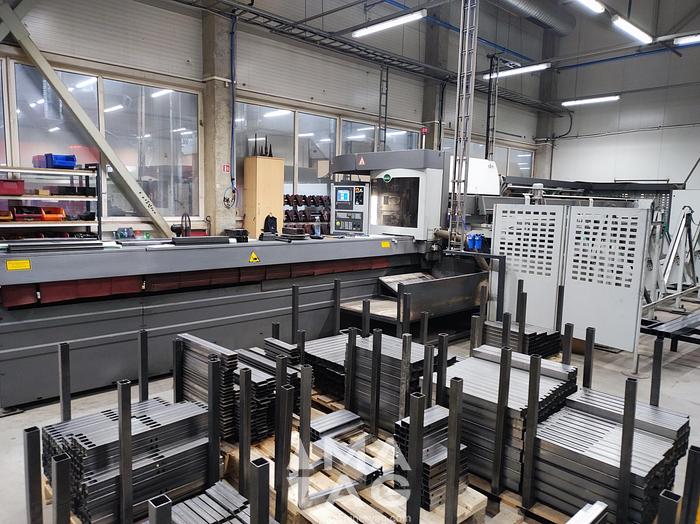

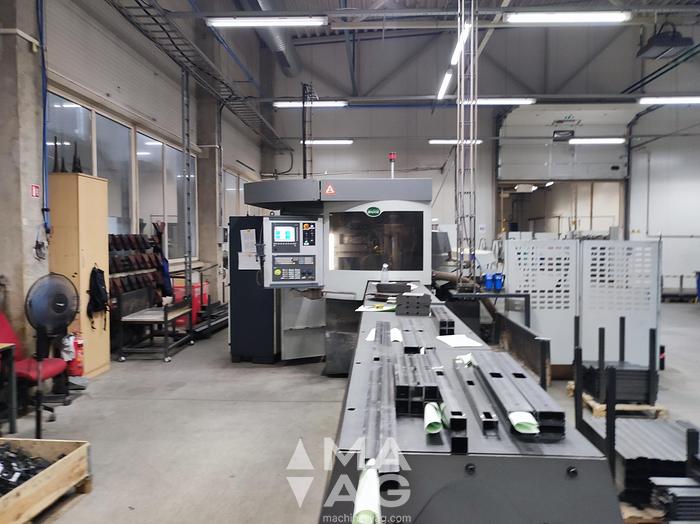

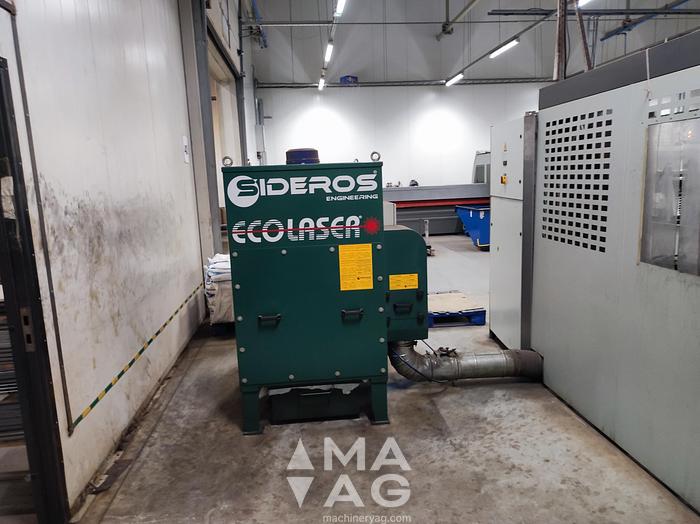

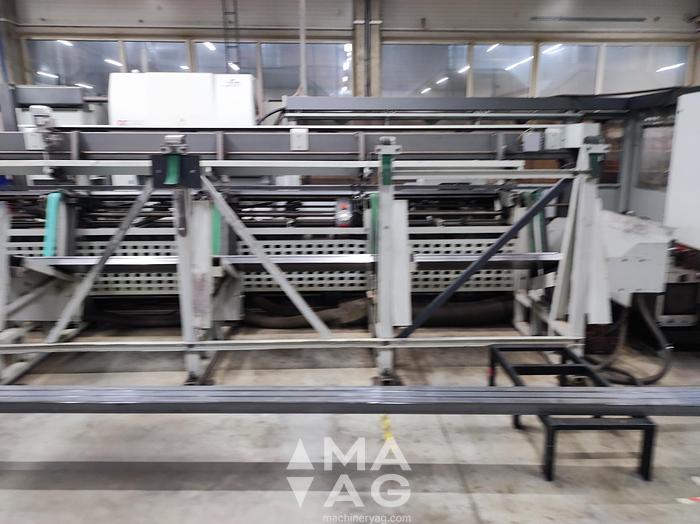

2013 Adige LT120 Laser pipe cutting machine

ADIGE LT120 laser for sale! Service report 6/5-2024.

Technical specifications

Machine CNC working axes:

X tube axis 6500 mm

Y beam guidance axis 170 mm

Z beam guidance axis 95 mm

A rotary axis (chuck) n x 360°

A1 rotary axis (steady rest) n x 360°

W unload piece support 85 mm

Speeds:

X tube axis 90 m/min

Y beam guidance axis 30 m/min

Z beam guidance axis 22.5 m/min

A rotary axis (chuck) 750°/s

A1 rotary axis (steady rest) 750°/s

Accuracy:

Position accuracy interpolated axes ± 0,05 mm

Repeatability ± 0,03 mm

Position deviation 1) ± 0,1 mm

Work piece dimensions:

Max. raw material length 6500 mm

Min. remaining tube length 160 mm

Finished part length 4500 mm

Min. tube diameter 12 mm

Max. outer circle diameter 120 mm

Min. edge length on rectangular and square tubes 12 mm

Max. circle diameter for inscribed rectangular/flat oval tubes 140 mm

Maximum work piece weight:

Raw material and finished part 13,5 kg/m

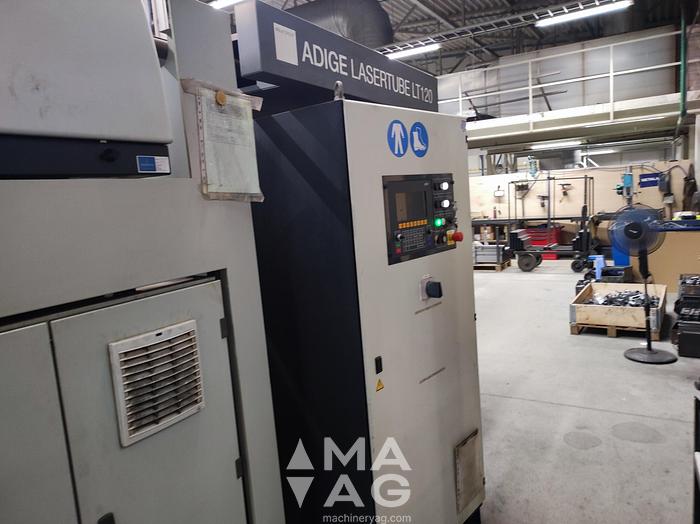

Control Siemens Sinumerik 840D:

RAM 256 MB

Color monitor TFT 10,4“

Hard disk memory 10 GB for NC programs

PCU with Windows

Laser Rofin Sinar DC020

Max. laser power: 2000 W

Max. sheet thickness:

Mild steel (O2): 6 mm

Stainless steel (N2): 4 mm

Aluminum alloy (N2): 3 mm

Beam mode:

K-factor >0.9

Consumption values:

Laser gases: Premix gas bottle inside the laser source.

Bottle substitution every 12-18 months, according to working hours.

Cutting gases O2 or N2 consumption depends on cut material and part geometry.

Complete unit electrical consumption:

20 - 40 kW/h all included

varies according to the cut material and part geometry.

Compressed air consumption:

30 Nm³/h
