Veneer crossfeed splicing Fisher+Rueckle FZR-15 +stacking+lifting

Machines connected in one line (all three machines are only sold together). Still in production!

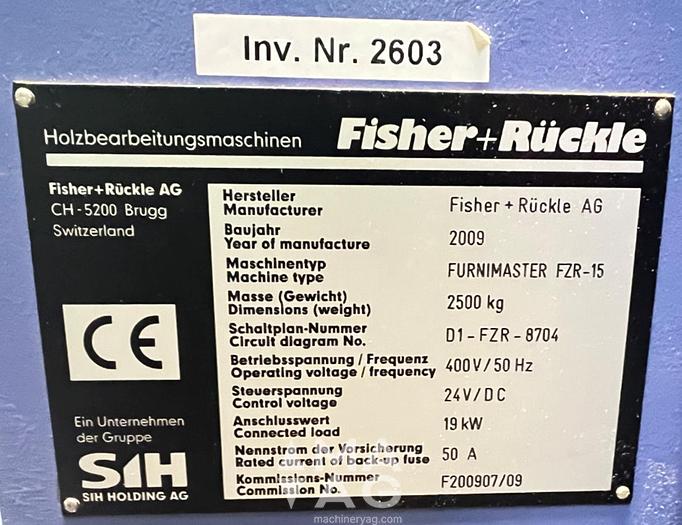

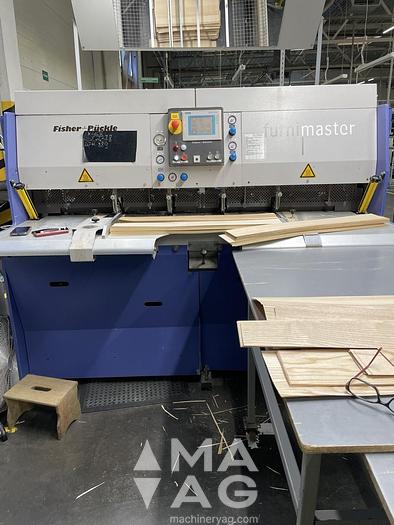

1. Veneer crossfeed splicing machine Fisher+Rueckle FZR-15, year 2009

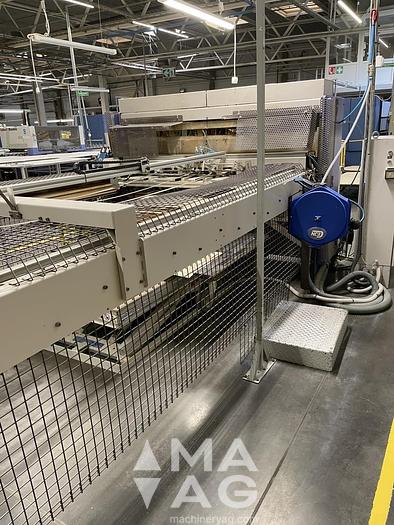

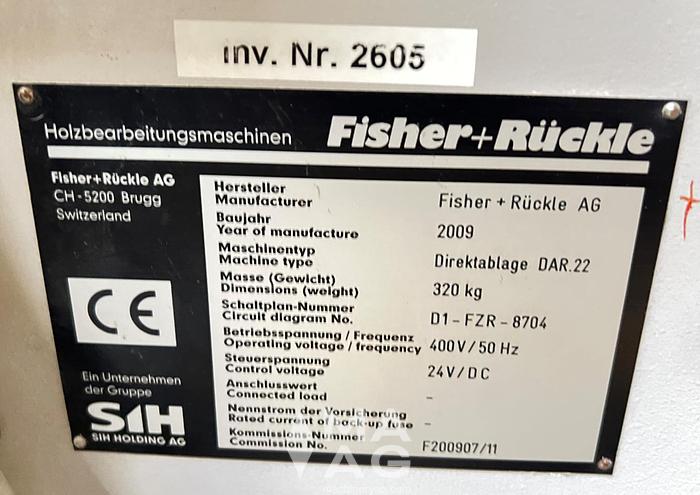

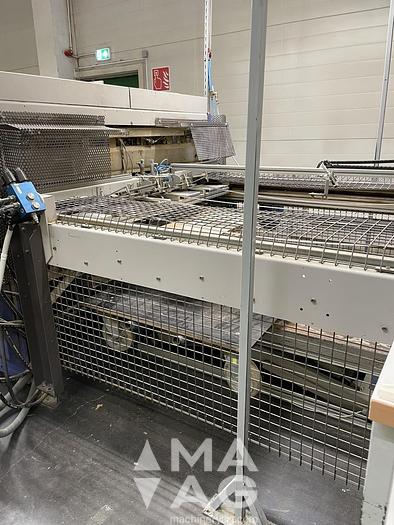

2. Direct Stacking Device Fisher+Rueckle DAR-22, year 2009

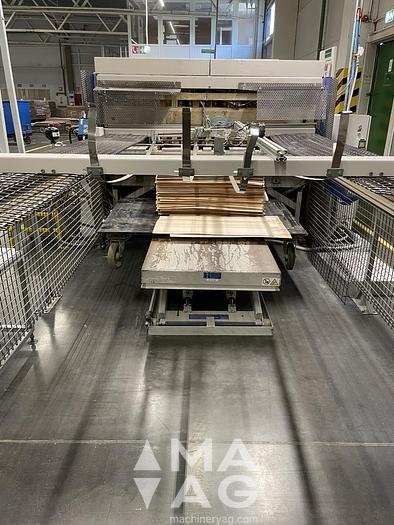

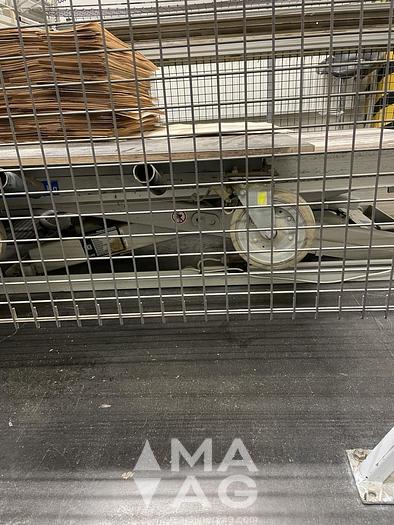

3. Scissor lifting table

TECHNICAL DOCUMENTATION (full pdf on request)

Veneer Cross-feed Splicing Machine FURNIMASTER FZR-15

Veneer format length (longitudinal to the fibre) 350 - 1500 mm

Veneer format width (transverse to the fibre) 50 - 500 mm

Veneer strip thickness 0.3 - 1.5 mm

Max machine output 30 cycles/min. (the output rates are related to an average veneer strip width of 100 mm transversely to the fibre)

Connected load (basic machine):

Power rate 13.5 kW

Compressed air pressure 6 bar

Power consumption:

Electric power 6.2 kWh

Compressed air supply 15 NL/min.

Dimensions and weight (basic machine): 2940 mm L x 1000 mm W x 1530 mm H. 3200 kg

Stacking device DA-2200

Veneer format length (longitudinal to the fibre) 600 * - 1500 mm

Veneer format width (transverse to the fibre) 500 * - 2200 mm

Maximum stacking width for output on the

- right-hand side 2200 mm

- left-hand side 2200 mm

- back 1500 mm

Stacking height max. 500 mm

Power consumption from FZR-15

Weight 1200 kg

Lifting table 1000 kg: 2500 mm L x 1200 mm W.
