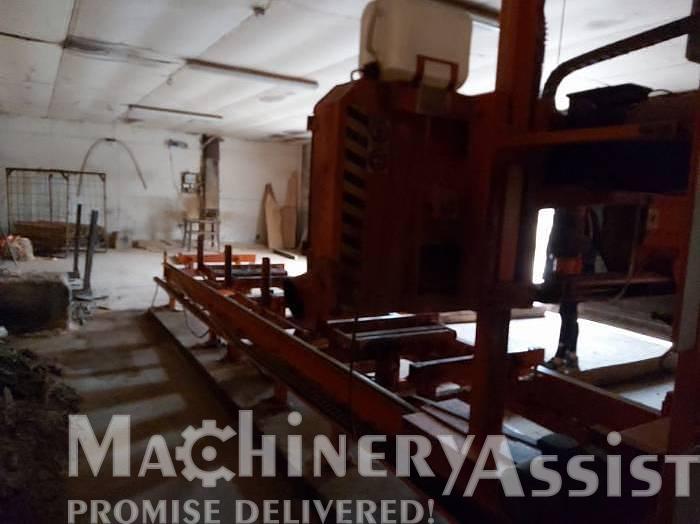

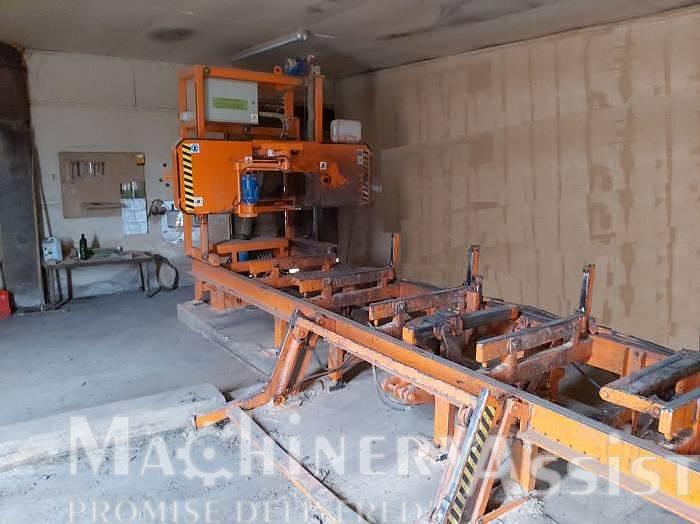

2012 WIREX CZ-1/ZM Wipping

The machine is for wiping log wood into elements in the form of boards, beams, battens, roof truss and other.

Technical data:

Max. log diameter 1000 mm

Cutting length 4800 mm

Main engine power 11 kW

Power demand 12 kW

Power 400 V (3 phase)

Head feed

Vertical up / down electric

on chains

Front / rear levels - electric

on the inverter

speed 4-30 m / min

Movable roller slider electric - adjustable joystick

Pulley diameter 600 mm

Blade length 4800 mm

Hydraulic assembly

loading arm (1 pc.)

claw log turner (1)

hydraulic pressure (1 pc)

leveling roller, standard (2 pcs.)

set of retaining arms (6 pcs)

Performance per hour up to 3.5 m 3

Dimensions:

Length 6000 mm

Width 2300 mm

Height 2650 mm

Mass 1700 kg
