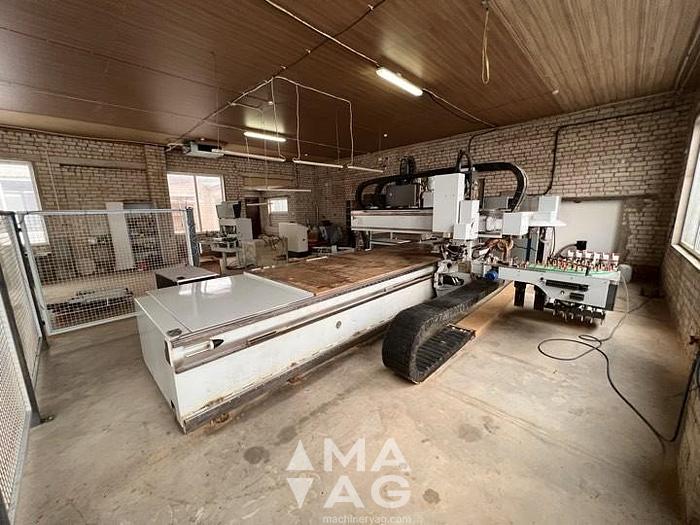

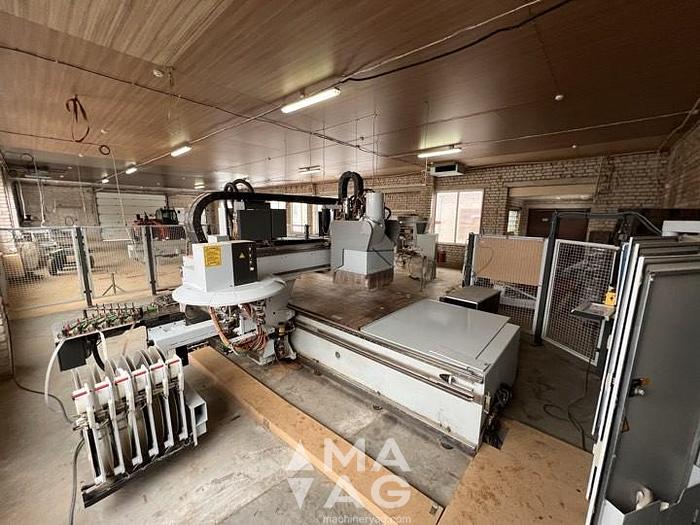

2003 Homag Optimat BAZ 322/40/G

Horizontal drilling head X axis 3 heads with two sides

Y axis heads 3

Vertical drill heads 15

Trimming head with 16 places tool changer

Aggregates suitable for edge banding operations - included

Vacuum table and accessories - included

Specification

Working dimension X 5.600 mm

Working dimension Y 1.200 mm

Working dimension Z 200 mm

Number of milling spindles 1

Main motor power 12 kW

Rotation speed max 18.000 U/min

Torque support

4th axis C-axis

Tool clamping system HSK-F63

Tool changer positions 12

Number of exchangeable units 3

Vertical drilling spindle 17

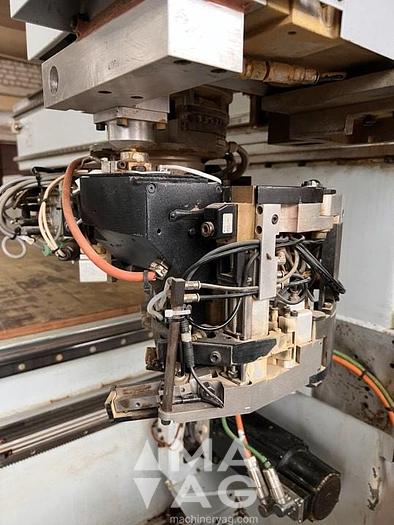

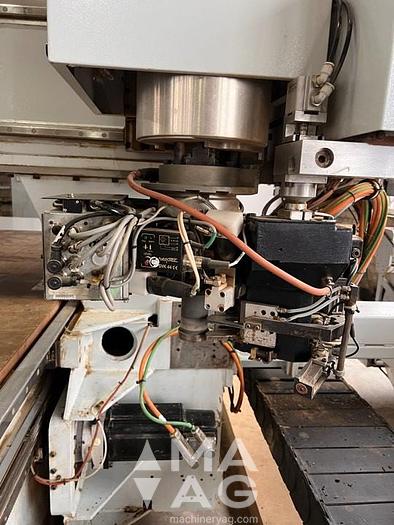

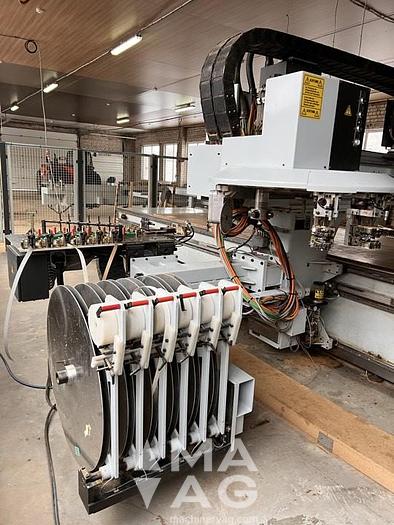

Edge Banding aggregate Separate Y-axis

Places in coil magazine 1

Cantilever machine

Machine table Plain table

4-field processing

Vacuum pump

Capacity vacuum pump 200 m³/h

Interface for .dxf data

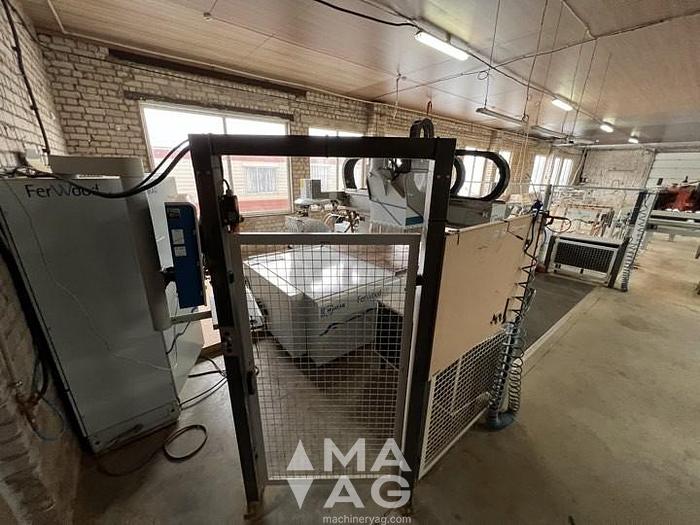

Safety device Safety mat

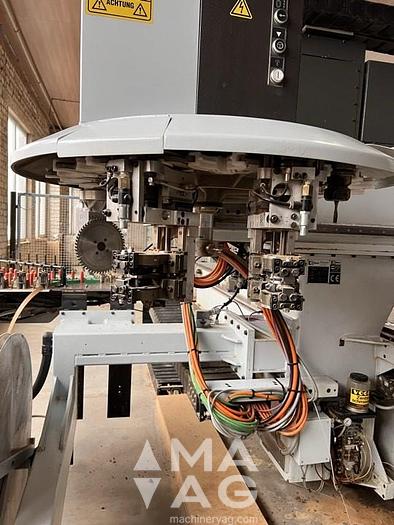

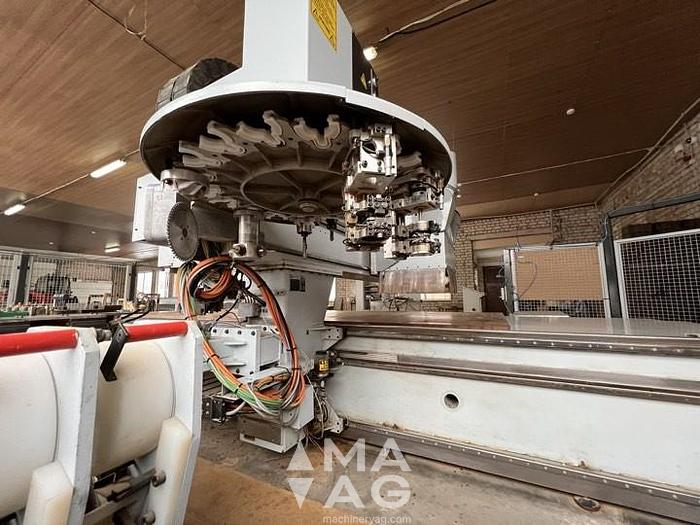

Disc tool changer

Milling spindle liquid-cooled

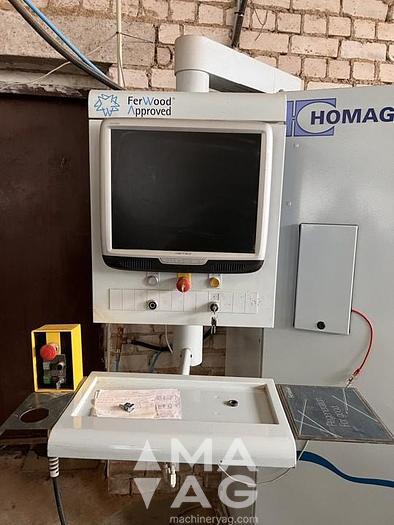

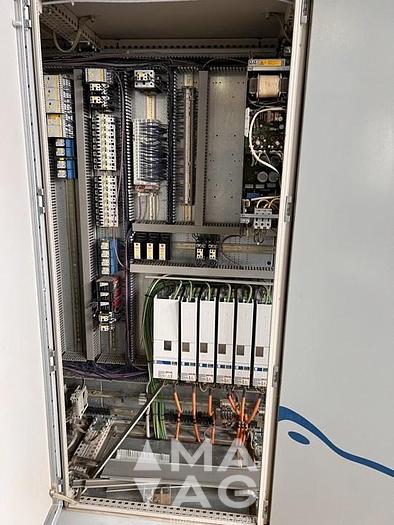

Control PC control

Software HOMAG WOODWOP 4.5

CE marking
