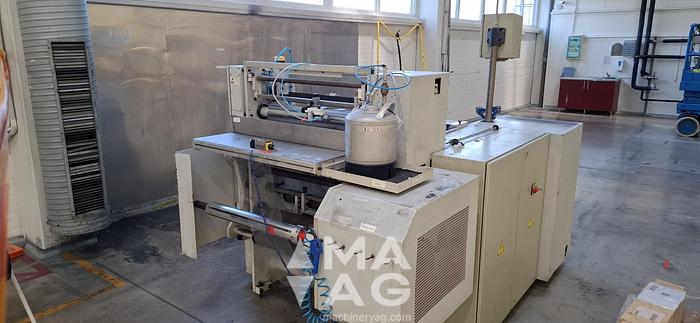

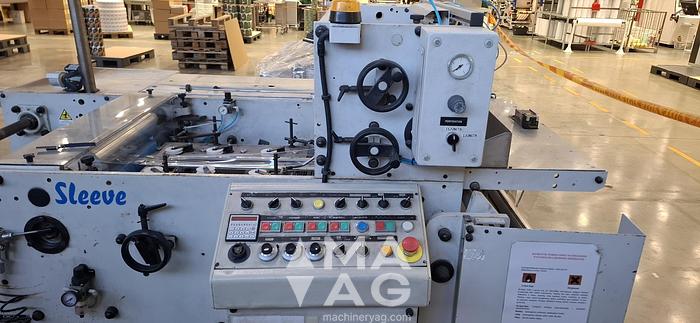

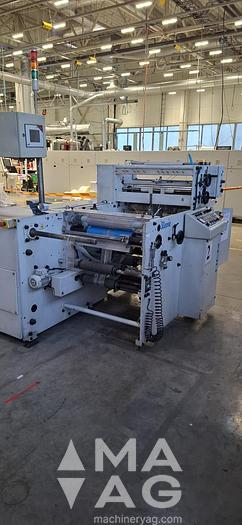

2004 DCM SLEEVE

Manufacturer DCM, year 2004

Maximum unwinding web wight 550 mm core 76 mm

Maximum unwinding diameter 600 mm

Maximum weight 160 kg

Minimum unwinding web wight 100 mm

Maximum sleeve wight 274 mm

Minimum sleeve wight 50 mm

Maximum sleeve diameter 600 mm

Maximum sleeve  weight 50 kg

Speed 250 m/min   Manually adjustable

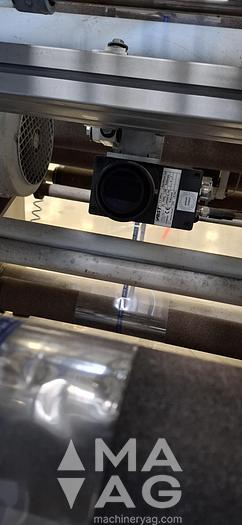

Web guide with line sensor

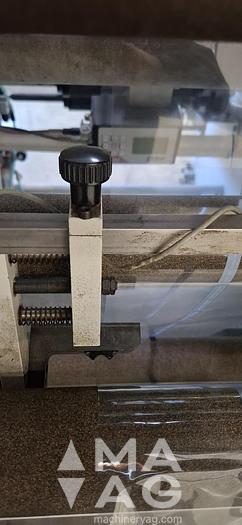

Position adjustable by handwheel

Electromagnetic brake with ultrasonic sensor Manually adjustable

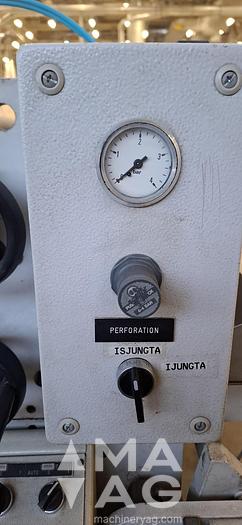

Perforation unit with pneumatic application

2 pneumatically driven wheel

Nip rool driven by an AC motor

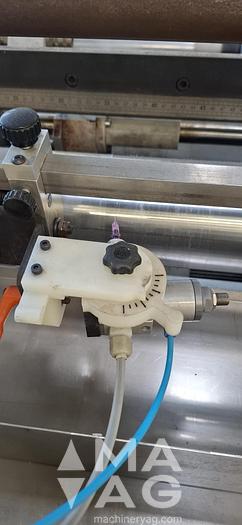

Automatic solvent supply by needle

Air preasure 6 bar dry

Material Shrinkable PVC, PET, PS film from 30 to 100 mkm

Enter wheels Adjustable by handwheel

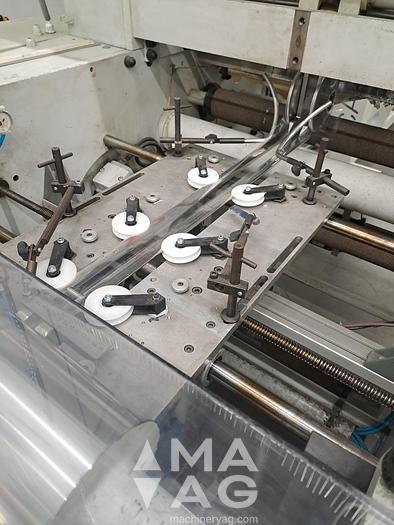

Forming plate Adjustable by handwheel

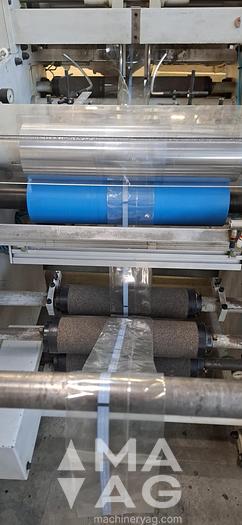

Forming wheels

Pressure against the forming plate by handwheel

Outfeed nip roll with pneumatic application driven by AC motor

Automatic width measuring system

Inching oscillation

Rewind shaft driven by DC motor

With chuck diameter 152 mm. ( 1psc.)

Supply power 15 kw

Supply voltage 3 x 400 v 50 Hz

Auxiliary electrical power 1 x 220 v  50 Hz

Length 2200 mm

Width 2300 mm

Height 1500 mm

Solvent tank 1 psc
