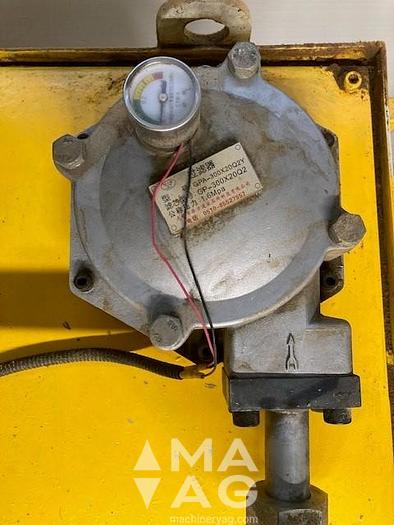

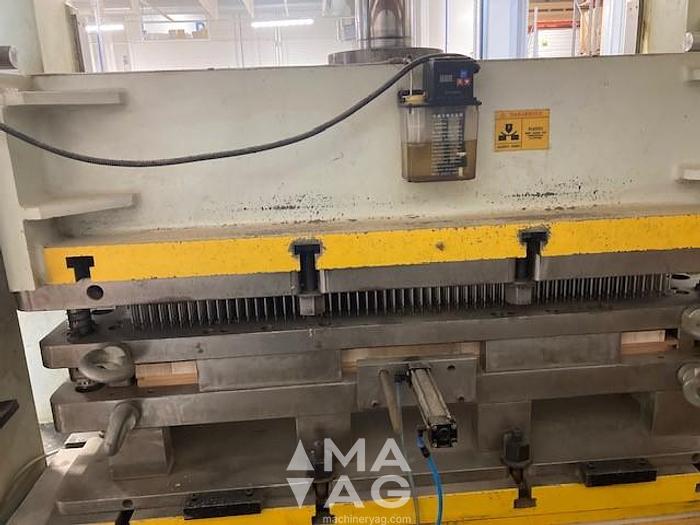

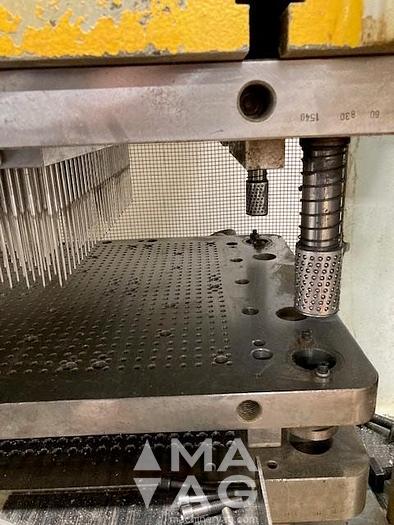

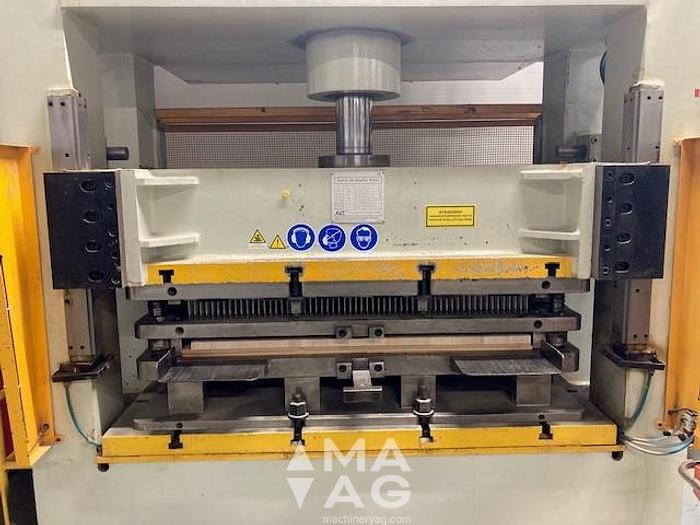

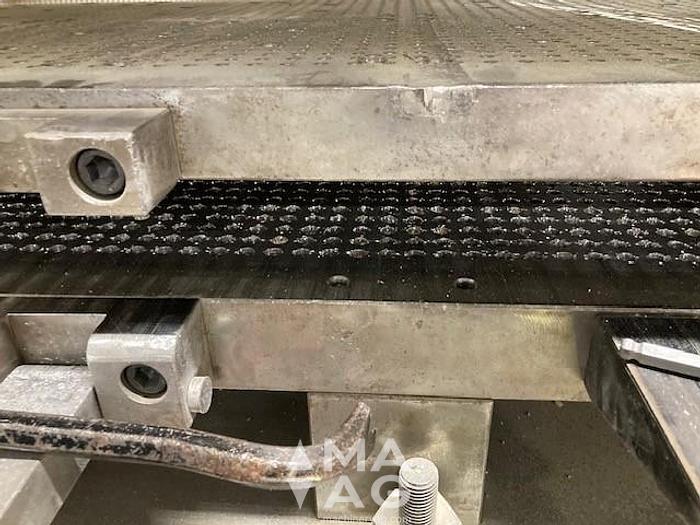

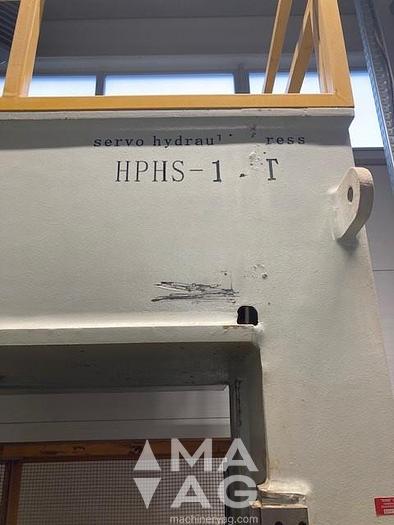

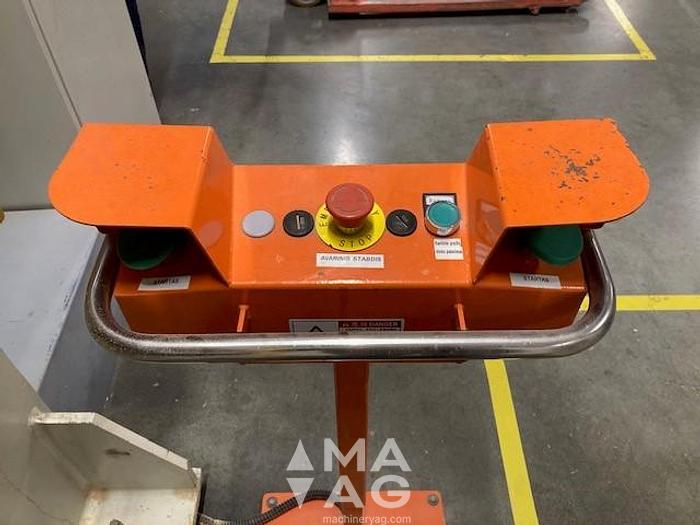

HPHS-100T H Frame Servo Hydraulic Press

HPFS series are suitable for processing metal materials, such as stamping, bending,

compressing and drawing metal sheet etc. It can also be used for straightening, pressing,

plastic molding, balsa wood punching and sintered parts compacting.

Nominal force 1000KN

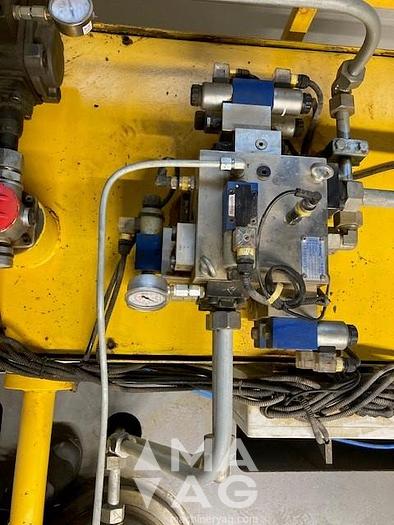

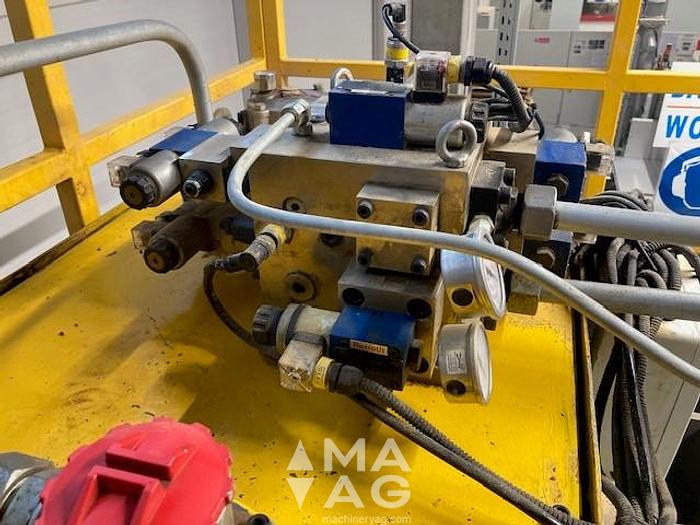

Max. working pressure of liquid 25Mpa

Slider stroke 400mm

Max. opening height 700mm

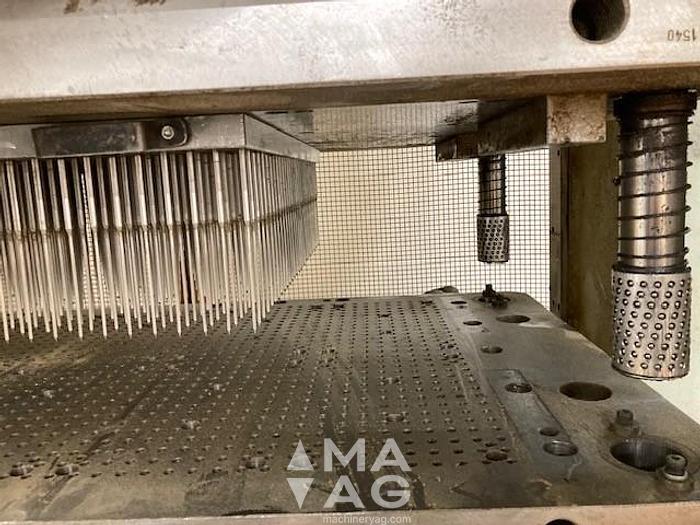

Worktable size 1700 x 800mm

Idle speed of slider 100mm/s

Working speed od slider10-25mm/s

Return speed of slider 30-80mm/s

Height above floor 800mm

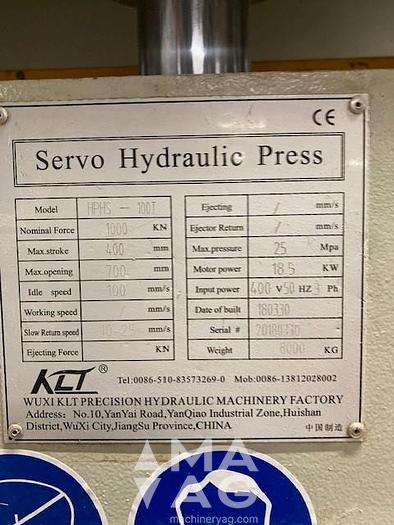

Specification Unit Parameter

Model No. HPHS-100T

Nominal Pressure KN 1000

Return force KN 320

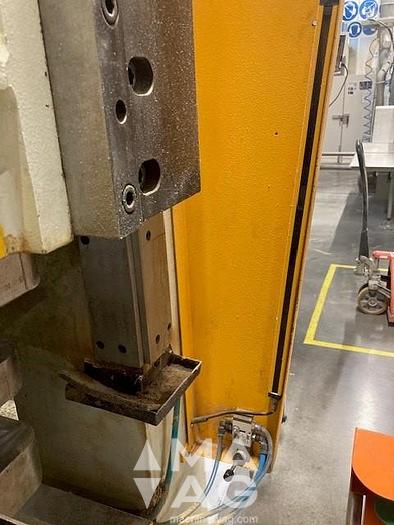

Slide Stroke mm 400

Max. Opening Height mm 700

Slider Speed:

-Downstream speed mm/s 100

-Pressing mm/s 10-25

-Return mm/s 30-80

Table Size:

-L.R. mm 1700

-F.B. mm 800

Overall dimensions:

-L.R. mm 2300

-F.B. mm 800

-Height above floor mm 3000

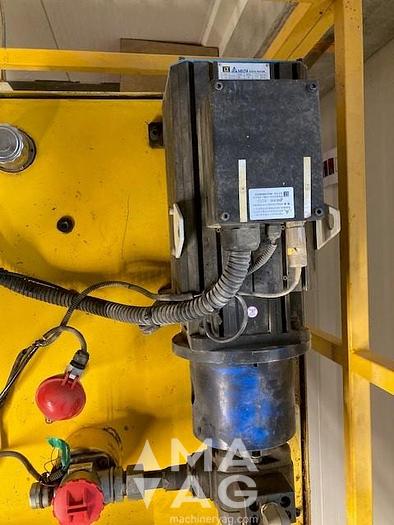

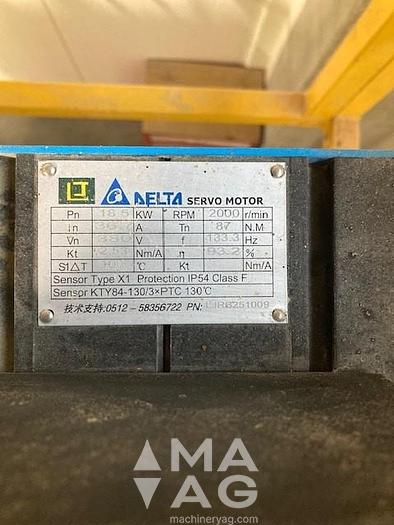

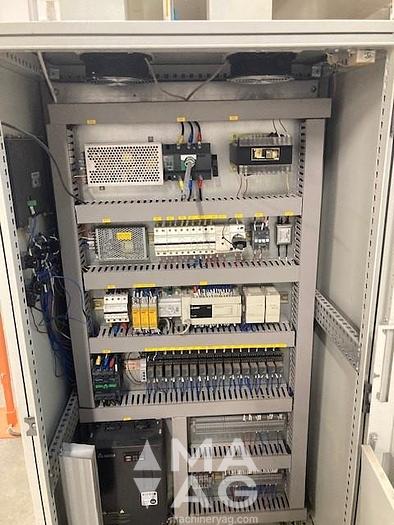

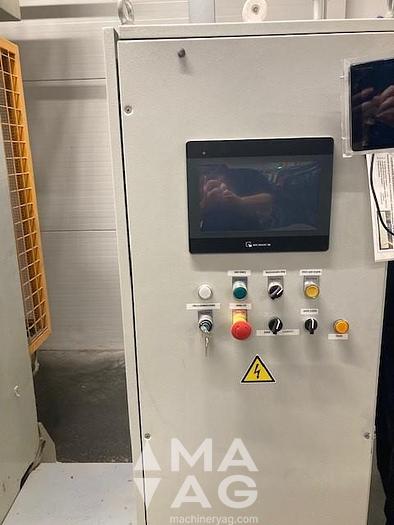

Servo motor Power KW 18.5

Voltage 400V, 50Hz, 3 Phase

Total Weight (approx) T 12

Below attached drawing with tech. specification
