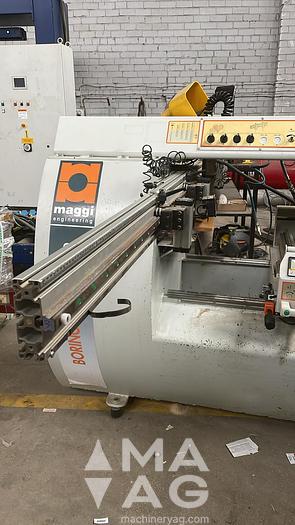

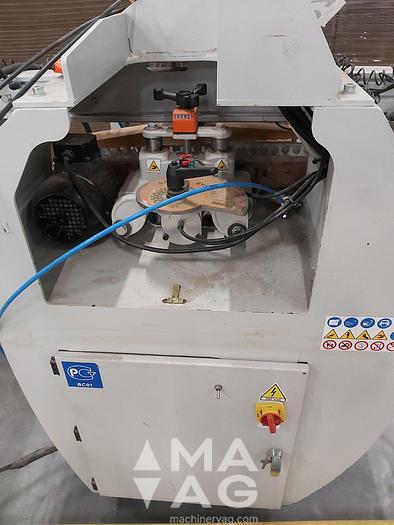

Maggi Engineering Boring System 323, 2008

Semiautomatic multi spindle 3-head boring machine with 1 horizontal fixed boring head and 2 turnable vertical boring heads with 23 spindles each.

GENERAL Technical specification

Distance between spindles 32

Number of clamping devices 2

Max. height of the clamping device from the work table 62

Max. workpiece dimensions 3000 x 920 x 80 mm

Working pressure 6-8 bar

Air consumption per cycle 12 l

Net weight 760 kg

Dimensions 1720 x 1015 x 1395 mm

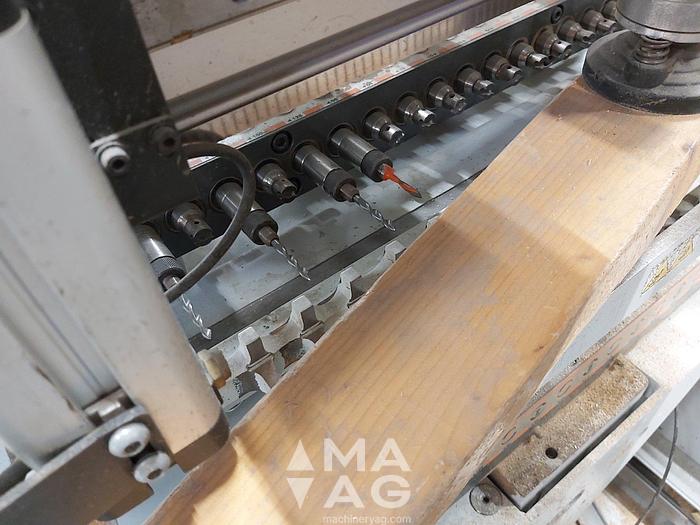

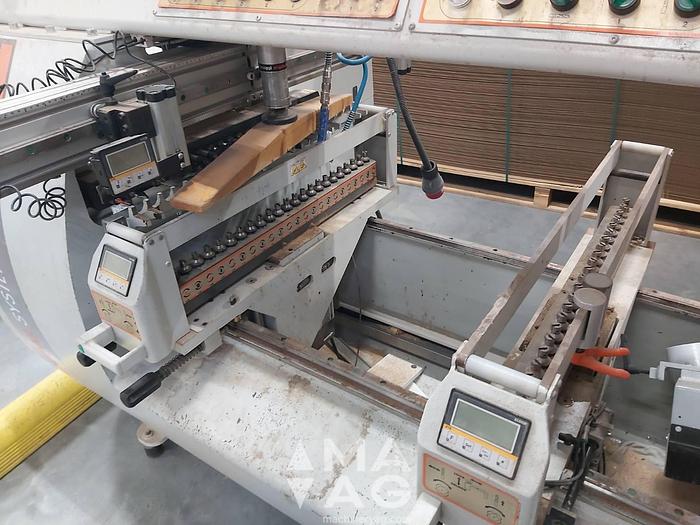

VERTICAL AGGREGATES

Number of vertical heads 2

Number of spindles in each head 23

Distance between the first and last spindle 704 mm

Min. distance between parallel heads 150 mm

Max. distance between vertical heads 920 mm

Max. drilling depth 50 mm

Height of the work table 890 mm

Number of motors per head 1

Engine power 2 (1.5) HP (KW)

Engine revolutions per minute 2800rpm

HORIZONTAL DRILLING

Number of horizontal heads 1

Number of spindles in the head is 23

Distance between the first and last spindle is 704 mm

Max. travel of the head with a digital indicator 40 mm

Maximum drilling depth 65 mm

Number of engines 1

Engine power 2 (1.5) HP (KW)

Engine revolutions per minute 2800 rpm

MATERIALS

Wood

MDF

Wood panels, laminated wood, etc.

The max. plate thickness is 80mm

MACHINE CONSISTS OF

- Steel frame

- 3 drilling units with gear system and shafts and holes for quick replacement;

- Pneumatic system for placing and moving aggregates;

- Supports ensuring the same distance in both vertical and horizontal positions;

- 4m aluminum ruler with 4 supports

- Spindle height adjustment, mechanical counter and "Spiral System" device, which regulates the depth of holes;

- Handle for adjusting the height of the shaft, electronic counter for determining the position of the unit, trolley for each vertical unit.
