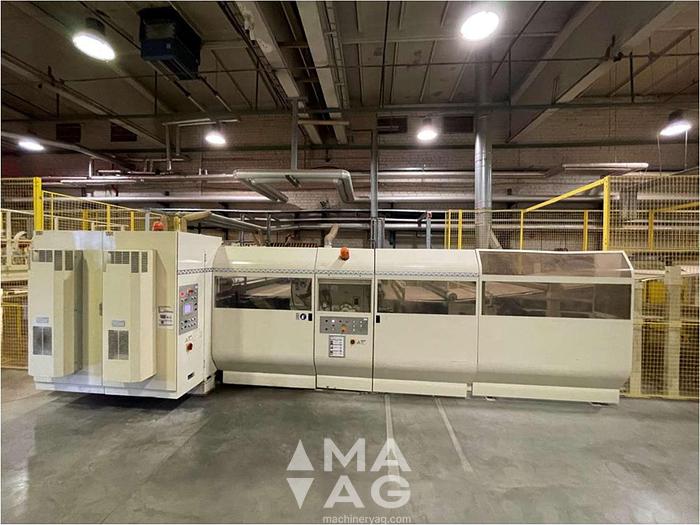

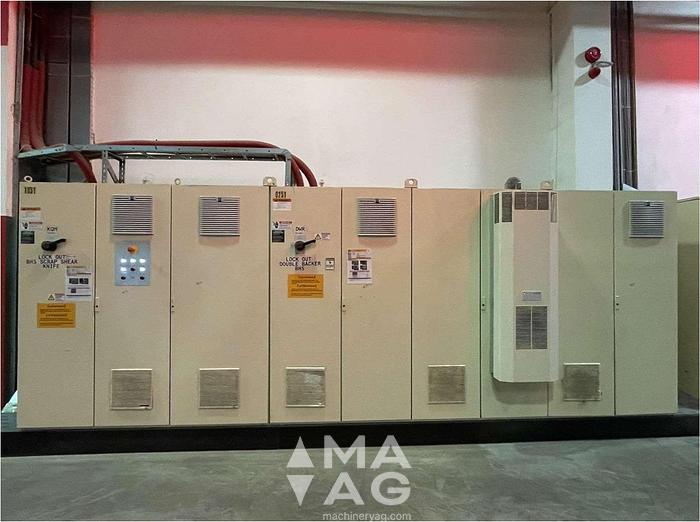

BHS modules: Web Alignment & Bridge Break, Glue Machine LWR, Rotary Shear KQM, Slitter Scorer Robot Serial (SR-S)

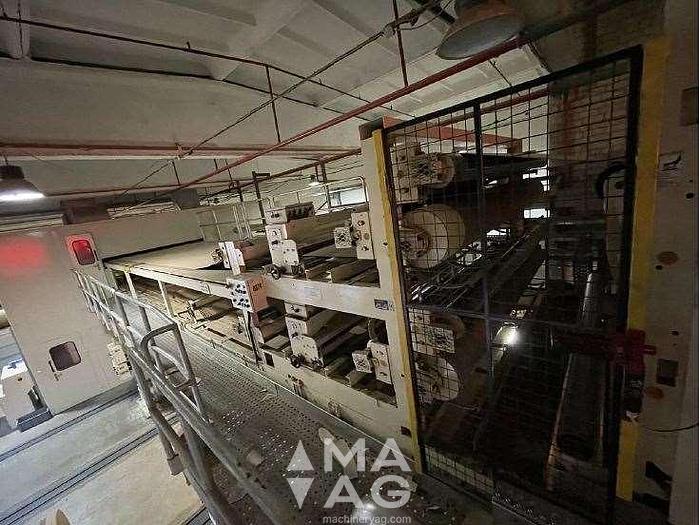

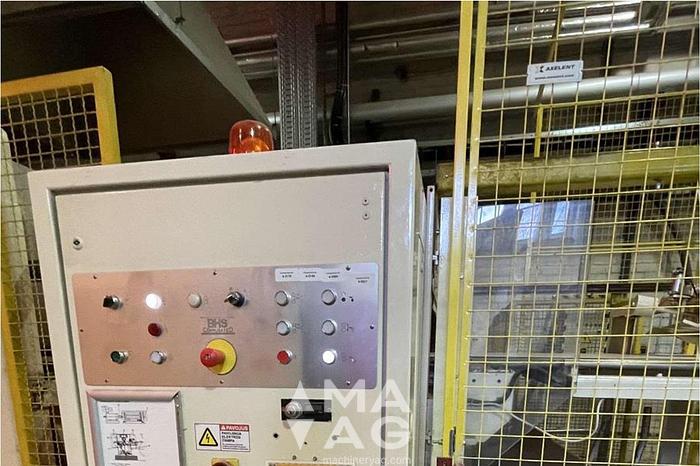

• BHS Web alignment and Bridge Break – Year 1997

Working Width 2500 mm max.

Drive side right/left

Machine speed 300 m/min

Dimensions (2500 mm) specific–3000–specific (mm) length-width-height

Overall Weight 15000-22000kg (according user requirements)

Drives/brake roll (bridge brake) Servo drive 4,2 kW/4100 r.p.m.

Transport station Belt runs, automatic speed adjustments

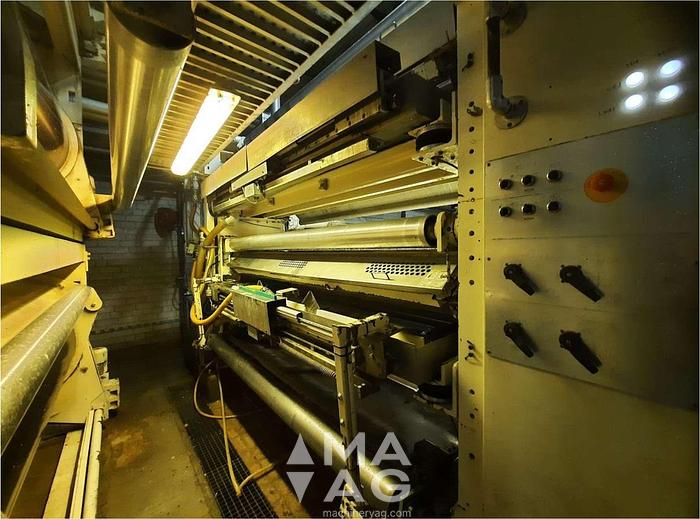

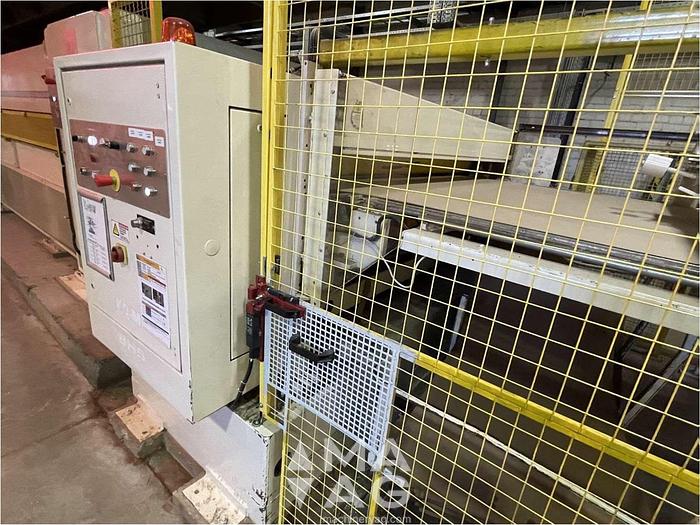

• BHS – Glue Machine LWR (Without electric cabinet) – Year 1997

Working Width 2500 mm (98 inches)

Drive Side right/left

Working widths min. 1400 mm max. 2500 mm

Machine speed 300 m/min

Operating steam pressure Max 16 bar with 200 degrees/C

Dimensions (2500 mm) 1510-4430-3450 (mm)

Weight 9200 kg

Vibrational emission are within legal limiting values

• BHS - Rotary Shear KQM – Year 1999

Working Width 2500 mm (98 inches)

Drive Side right/left

Machine speeds 220 m/min

Roll Diameter Transport roll infeed, 160 mm (6.3

inches)

Anti-crush roll, top 165 mm (6.5 inches)

Compressed Air System pressure 6 bar (87 psi)

Supply pipe ¾“

Consumption per cycle 0.01 m3 (10 lt)

Dimensions (2500 mm) 1997-5350-1610 (mm)

Weight 5500 kg

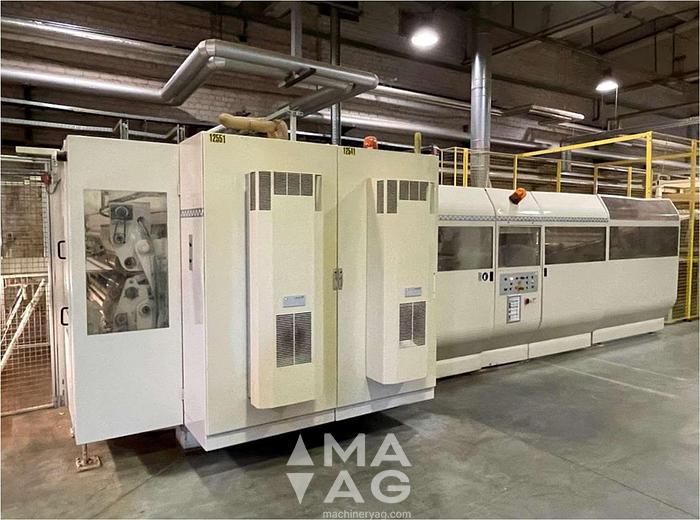

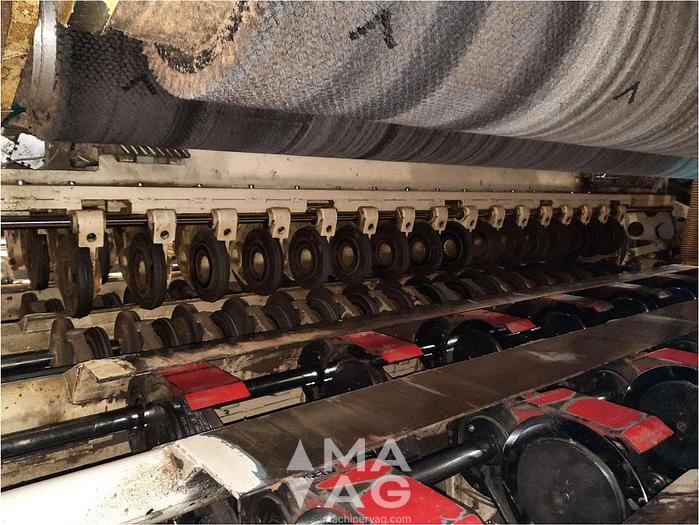

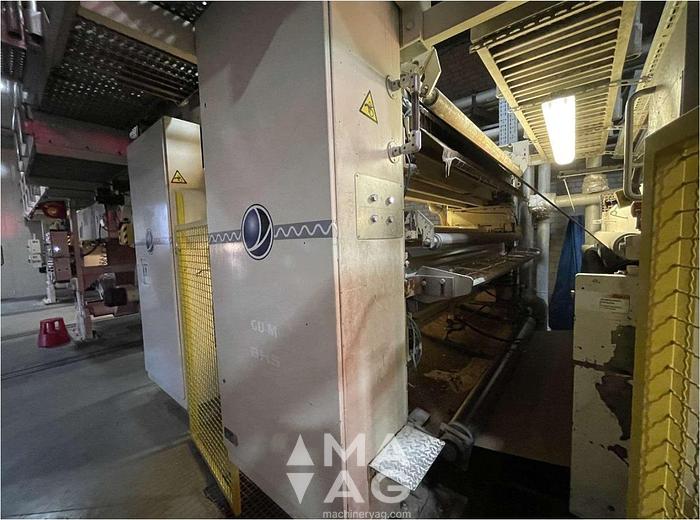

• SR-S S Slitter scorer with Line following system – Year 2005

Working Width 2500 mm max. 1050 mm min.

Drive Side right/left

Machine speeds 400 m/min

Side Trim pickup Disc cut

Tool positioning ~ 1,000 mm/sec.

Paper grades Up to 2000g

Board caliper Min. 0.5mm, max. 15mm

Compressed Air System pressure 6 bar (87 psi)

Scorer profile 200 mm max. 198 mm min.

Knife body disc cut 240 mm max. 210 mm min.

Dimensions (2500 mm) 3864-6384-2980 (mm)

Lubrication capacity 30 l

Side trim pickup Volume flow for 2 tubes min 10.500 m3/h

Weight 17600 kg

Status: all of the modules are already dismantled
