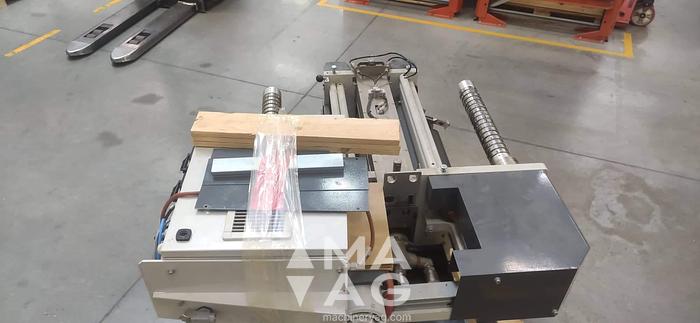

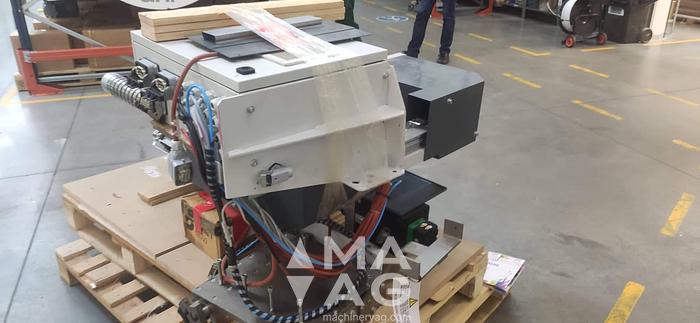

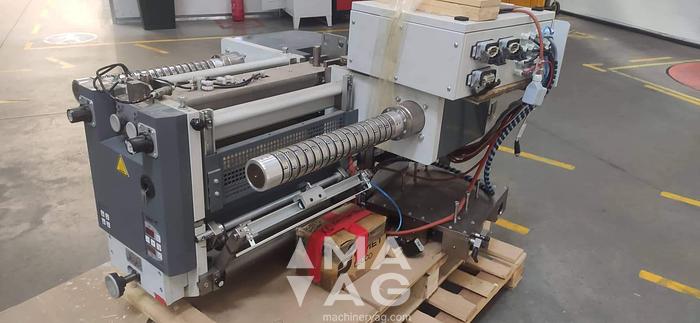

Inline hot foil stamping unit (NEW!) for xflex 430

Inline hot foil stamping unit (NEW!) for xflex 430

Servo Driven Hot stamping system (diathermic oil heating) to be positioned onto every printing unit

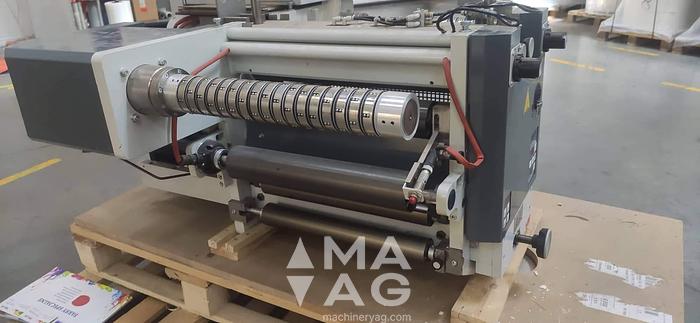

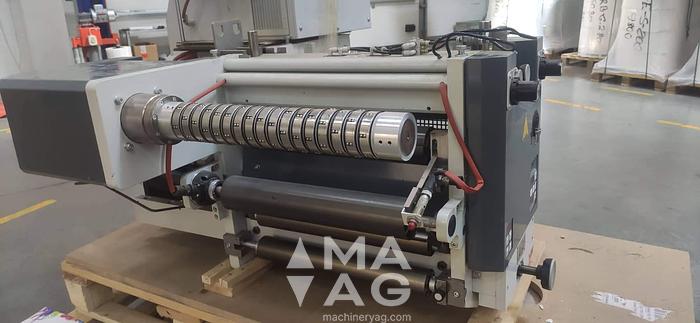

Foil unwinder with independent section clutches for foil-saving made.

Max unwinding diameter 400 mm (15,75")

-     Independently motorized Foil Rewinder with independent section clutches for foil-saving made.

-   Load Cells system web tension control

-     Pneumatic expanding shafts, diameter 76 mm (3") switch activated

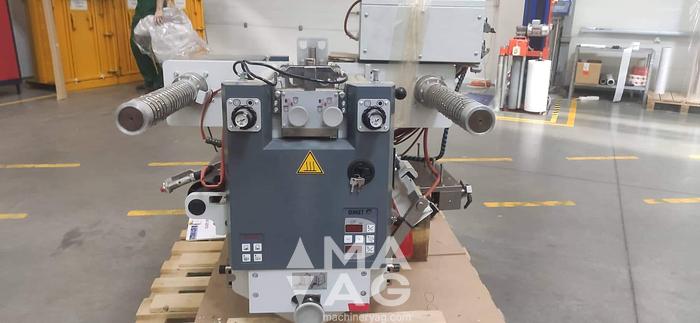

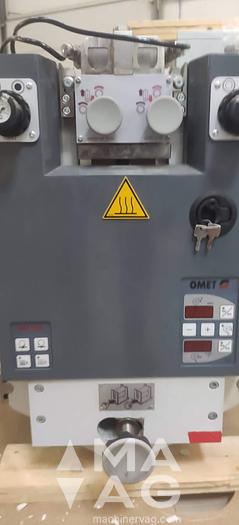

-     Unwinding/rewinding Web tension setting from operator panel or main control

-     Hot stamping repeat range: min. 12" max 25"

-     Diathermic Oil heating system, including heater, piping and electric connections. Max temp. 230°C

-     Pre-register function

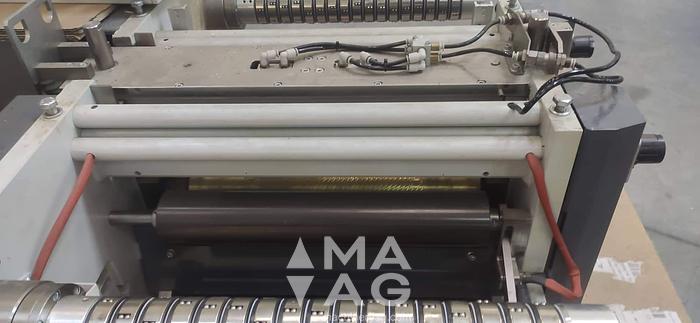

-     Includes one Hot foil mandrel, SERVO DRIVEN, at your choice between following repeats:

-     12"-14"7/8, 15"-17"7/8, 18"- 20" 7/8, 21"- 25

-   Tooling handling device for HOT FOIL

-   Change over trolley for HOT FOIL
