BOXmaker ULTRA printing & gluing

Features of Boxmaker ULTRA

• Board size: 2400 mm width, unlimited length

• Cardboard type: single, double and triple wall up to 14mm and 1400 GSM

• Fully automatically setup of tools via 21-inch HD touchscreen control

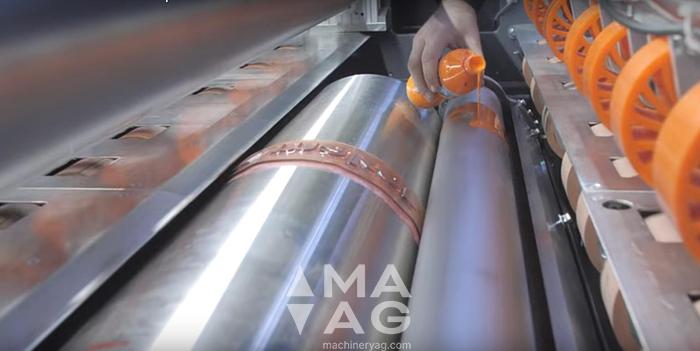

• Flexo printing unit 1000 mm x 870 mm printing surface

• Nordson Cold Gluing unit, two lines

• Hand holder tool, die cut module

• Cross cutting tool, transversal cuts anywhere via the width

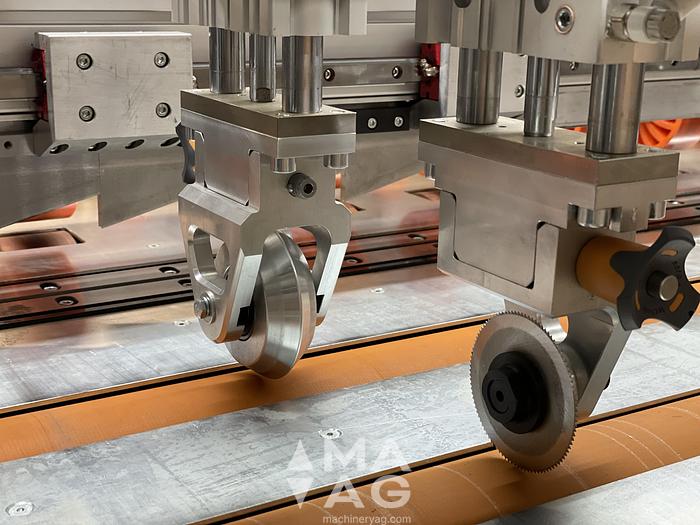

• Segmented slotting knives with integrated creasing

• 4 x creasing wheels for longitudinal creasing

• 6 x circular blades selectiv length of cutting

• Predefined FEFCO codes + free mode
