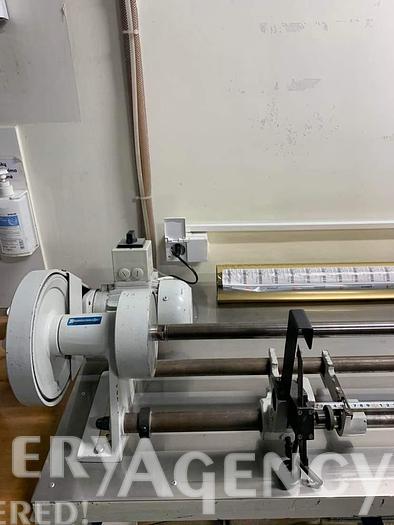

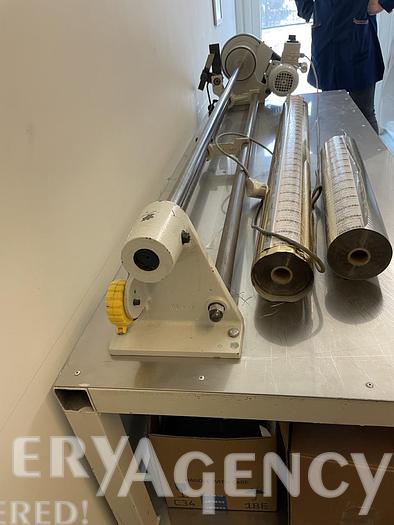

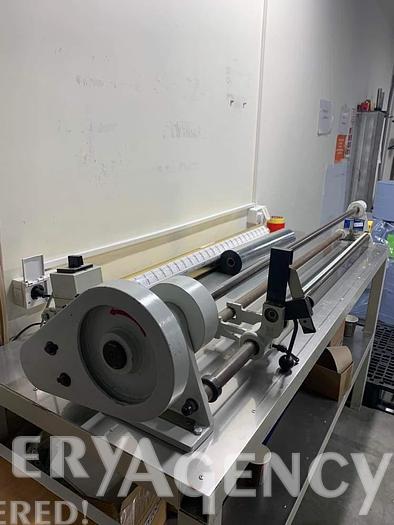

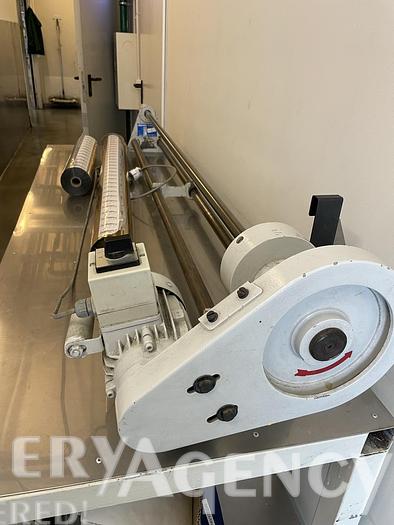

2003 KURZ C-130 Slitter for hot stamping foil

Specification

Cutting width continuously adjustable up to 1300 mm

Drive 3 phases, 400 V, 0.4 kW, 50 Hz / 1 phase, 230 V, 0.4 kW, 50 Hz

Measuring device with mm and inch scale, reset to 0 in every position

Cutting shaft 24.8 mm Ø, hardened steel

Shaft mounting between a rigid and spring loaded center

Headstock housing in ball bearings

Roll mounting with spring loaded pawls (2) on the headstock

Bearing special cast slide bearing of the blade carriage with stripping rings stable guiding of the blade housing with ball bearings Blades 6 blades included made of saw blade steel

Driving disk for V-belt prof. 13, nominal value 180 Ø

Length 1.680 mm

Width 220 mm

Height 270 mm

Optional for sale - foil material 900 m2 KURZ - suitable for NewFoil 2500 machine

Available immediately!
