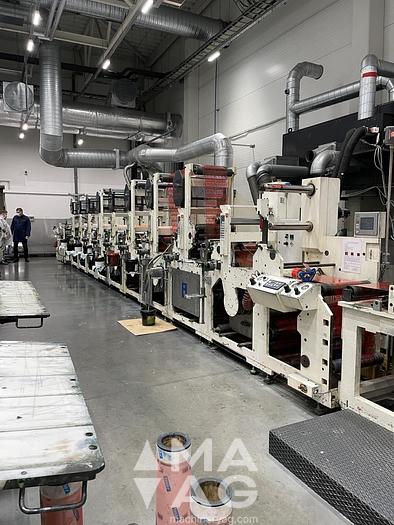

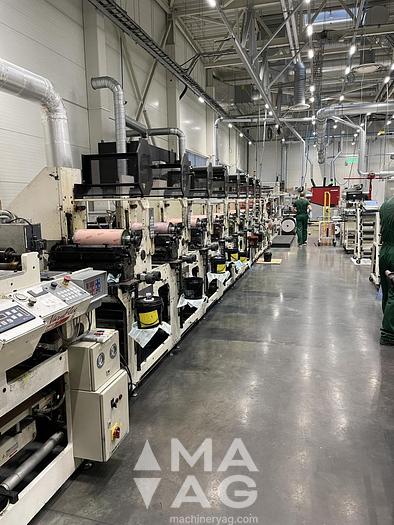

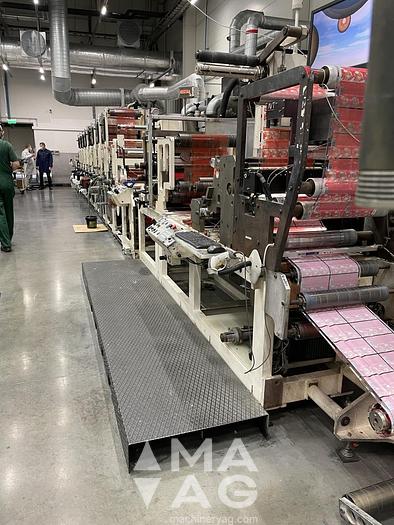

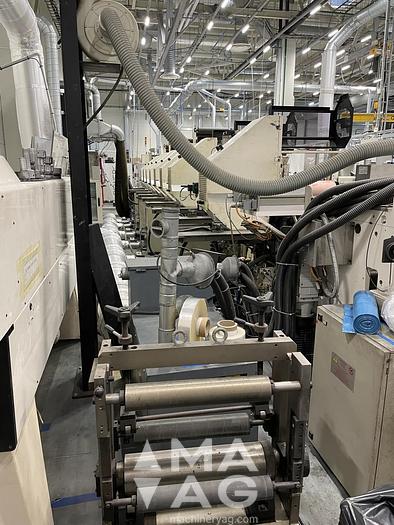

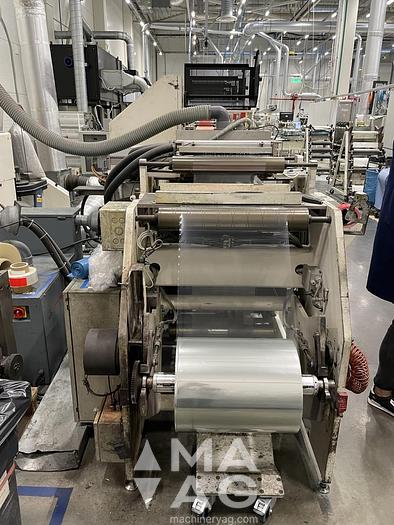

2004 OMET Varyflex VF420 FP 9 color

Available immediately!

Specifications

Web width 420 mm

9 printing unit

Material 12mkm film / 600 mkm cardboard

Max speed 150 m/min

Air pressure 6 bar

Printing repeat min 304,8 mm / max 838,2 mm.

Printing register adjustment 360

Maximum print width 405 mm

Maximum die cutting width 405 mm

Maximum die cutting repeat min 304,8 mm / max 609,6 mm

Unwinder spindle diameter 76,2 mm

Rewinder spindle diameter 2 shaft 76,2 mm

Unwinder diameter 1000 mm

Vacuum system, double side web cleaner 1psc

One side corona treatment 1 psc

UV curing system: single lamp UV GEW E2C system

Hot air drying system: possibility only unit no 6 and no 9

Kit for reverse printing. Including enclosed chamber doctor blade and peristatic pump:

Possibility unit no 8

Water cooling drums after each printing unit: chiller not included

Possibility UV laminating: unit no 8

Motorized video camera EL scan

Set of antistatic bars

Web breake sensor 1 psc

Servo driven mandrel for printing sleeves

Printing preasure adjusment on 4 independent points

Register adjustment is possible on every deck or at product

Operator interface through touch screen panel

Plate speed correction +- 2 % (slipping )

Inks pan with rubbel roll 12 psc

Web turn bar

Slitting unit

Machine in a high productivity with a very strict maintenance program.

Inspection any time!

Spare parts, accessories, technical documentation included
